Cabinet And Stirrer Parts


Control Panel Parts


Internal Microwave Parts


Microwave Door Parts


Optional Parts (not Included)

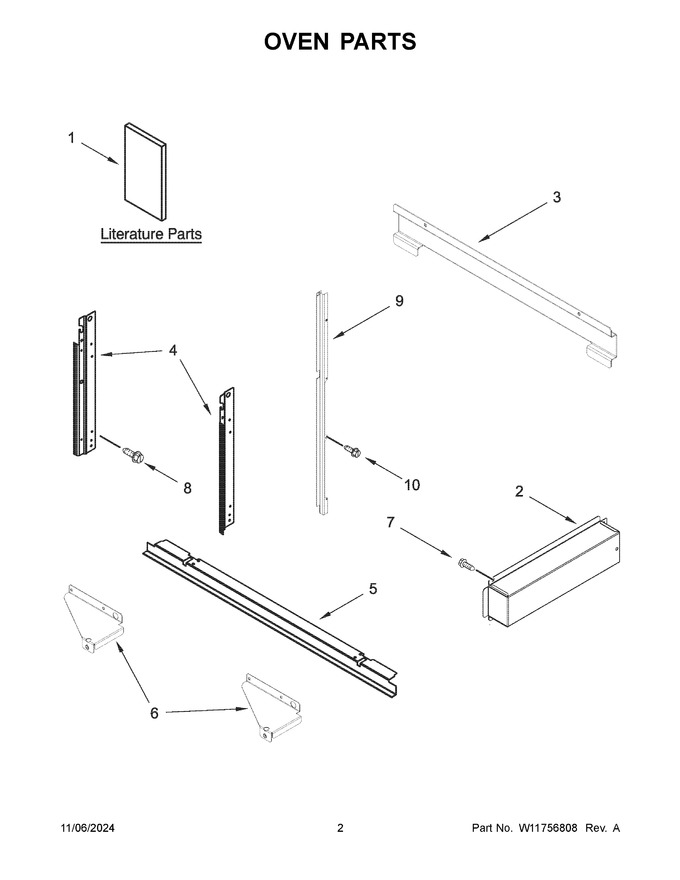

Oven Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11653410		Literature Parts (owner's Manual)		Appelez-nous	-
2	W10239155		Box, Conduit				$ 103.20
3	W11673269		Support, Microwave Module   (Replaces: W10420960)			Immediately	$ 69.92
4	W11627410		Siderail, Combo (left)				$ 61.70
5	W11312229		Trim, Bottom				$ 375.02
6	W10239158		Bracket, Lower (left)		Appelez-nous	-
7	7101P42660		Screw		Appelez-nous	-
8	7101P65360		Screw		Appelez-nous	-
9	W11239807		Trim, Bended Side (left)				$ 81.83
10	W11602623		Screw   (Replaces: W11404000)				$ 14.23
1A	W11423731		Literature Parts (quick Start Guide)		Appelez-nous	-
1B	W11399175		Literature Parts (tech Sheet)		Appelez-nous	-
4A	W11627411		Siderail, Combo (right)				$ 59.61
6A	W10239159		Bracket, Lower (right)		Appelez-nous	-
9A	W11239805		Trim, Bended Side (right)		Appelez-nous	-
NI	W11356992		Conduit				$ 223.29
NI	W11356986		Harness, Communication			Immediately	$ 112.86
NI	W11226264		Strap, Ground		Appelez-nous	-
NI	W11578578		Harness, Interlock   (Replaces: W11555168)			Immediately	$ 127.79
NI	W11598162		Bag, Hardware   (Replaces: W11394925)				$ 15.61
NI	W11578580		Jumper Harness, Communication   (Replaces: W11539527)				$ 30.24
NI	ARI7C4B781E09F4C135E8A56A812FBF5A4D		Following Parts Not Illustrated		Appelez-nous	-
NI	W11539494		Harness, Inverter				$ 43.39
NI	W11546965		Harness, Fan And Turntable   (Replaces: W11454022)				$ 78.88
