01 - Cover Sheet

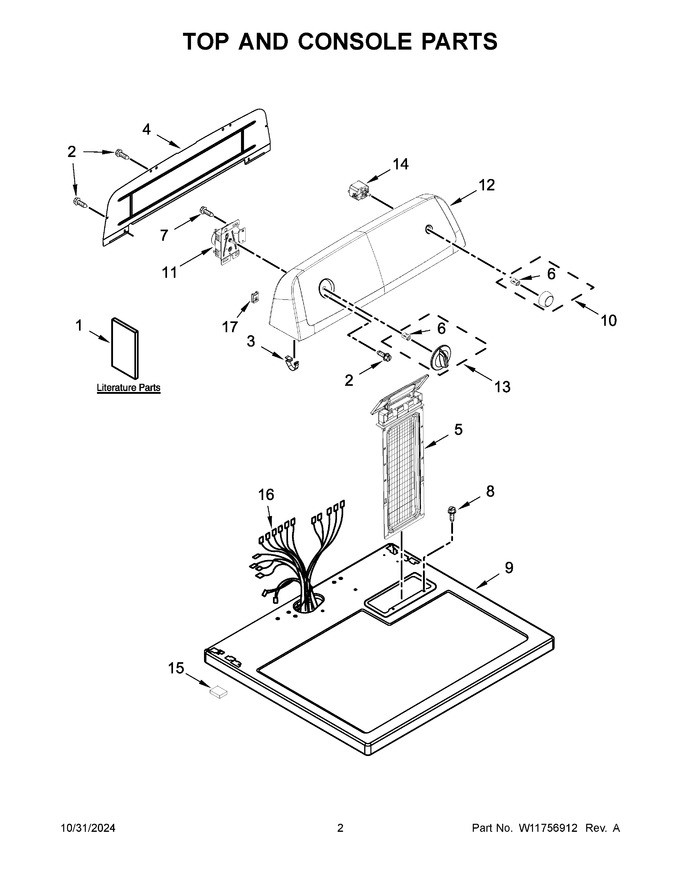

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11744326 | Owners Manual |
|
- | |||||
| 2 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.19 | ||||
| 3 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 16.35 | ||||
| 4 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 126.09 | |||||
| 5 | W11778253 | Lint Screen (white) (Replaces: W11538107) |
|
Immediately | $ 52.03 | ||||
| 6 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.81 | ||||
| 7 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.82 | ||||
| 8 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 14.06 | ||||
| 9 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 332.62 | ||||
| 10 | WPW10453948 | Knob, Push To Start (white) (Replaces: W10453948) |
|
$ 48.89 | |||||
| 11 | W10857612 | Timer (Replaces: W10745655) |
|
Immediately | $ 175.61 | ||||
| 12 | W11757844 | Console (Replaces: W11743042) |
|
- | |||||
| 13 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10711289) |
|
Immediately | $ 7.93 | ||||
| 14 | WPW10420741 | Switch, Push To Start (Replaces: W10420741) |
|
Immediately | $ 30.10 | ||||
| 15 | 3389682 | Spacer, Toe Panel |
|
$ 8.79 | |||||
| 16 | WPW10450286 | Harness, Wiring (Replaces: W10450286) |
|
$ 234.35 | |||||
| 17 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.74 | |||||
| 1A | W11744336 | Quick Start Guide |
|
- | |||||
| 1B | W11745869 | Tech Sheet |
|
- |
