SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Console Parts

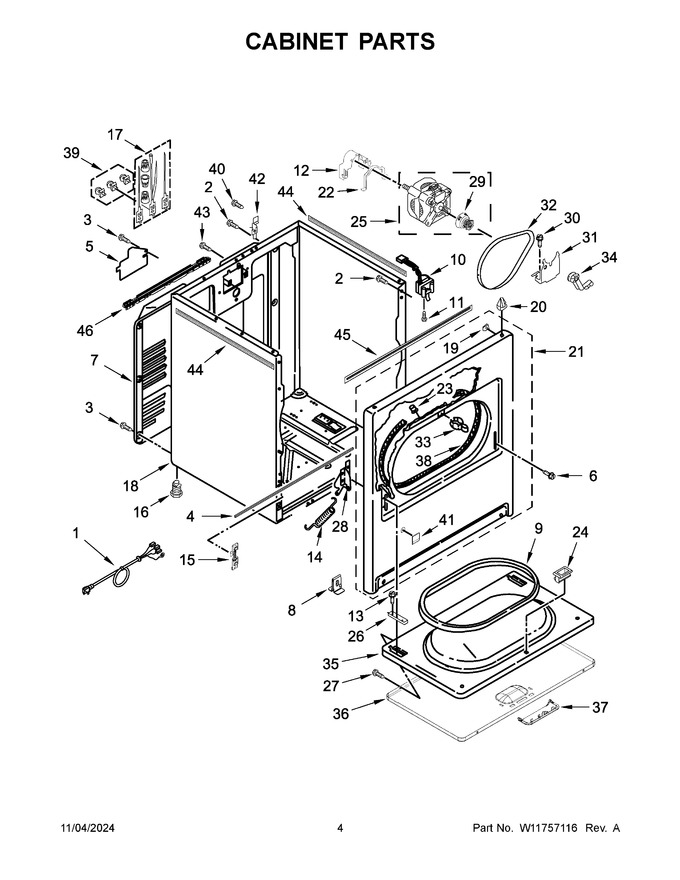

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Burner Assembly Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11222083		Cord, Power   (Replaces: W10869141)				$ 120.59
2	WP3390631		Screw   (Replaces: 3390631)				$ 7.82
3	WP693995		Screw   (Replaces: 693995)			Immediately	$ 7.19
4	W11596046		Seal, Spill Guard   (Replaces: W10841728)			Immediately	$ 51.51
5	W11736322		Cover, Terminal Block   (Replaces: 8558833)		Appelez-nous	-
6	342043		Screw		Appelez-nous	-
7	W11626083		Panel, Rear   (Replaces: W11598681)				$ 129.73
8	W10575896		Clip, Spring				$ 14.43
9	W10906683		Seal, Door   (Replaces: W10823580)				$ 128.53
10	WP3406107		Switch, Door   (Replaces: W10569603)			Immediately	$ 31.20
11	WP3395530		Screw   (Replaces: 697773)				$ 7.70
12	WP3404162		Clamp, Motor (with Shield)   (Replaces: 3404162)			Immediately	$ 7.82
13	WP308685		Screw   (Replaces: 3357011)			Immediately	$ 7.87
14	WPW10041960		Spring, Door   (Replaces: W10041960)			Immediately	$ 40.67
15	W10854425		Clip, Front Panel   (Replaces: W10775448)			Immediately	$ 15.56
16	W11025920		Foot, Dryer   (Replaces: W10561321)			Immediately	$ 23.51
17	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 100.99
18	8533643		Cabinet (white)   (Replaces: 8530603)				$ 399.26
19	WP98234		Clip, Ground   (Replaces: 98234)			Immediately	$ 11.39
20	WP8066092		Lock, Front Top   (Replaces: 8066092)			Immediately	$ 19.50
21	279740		Panel, Front (white)   (Replaces: W10664692)				$ 361.97
22	WPW10121316		Clamp, Motor Mount   (Replaces: W10121316)			Immediately	$ 25.68
23	279220		Clip, Felt Pad   (Replaces: 685203)				$ 20.65
24	WP3389441		Assembly, Door Catch   (Replaces: 3389441)				$ 6.20
25	279827		Assembly, Motor   (Replaces: W10396029)			Immediately	$ 191.95
26	W11252547		Clip, Hinge   (Replaces: 337189)				$ 21.39
27	WP488627		Screw   (Replaces: 342055)				$ 7.57
28	WP8066056		Hinge, Door (right)   (Replaces: 8066056)			Immediately	$ 98.56
29	WP8066184		Pulley, Motor   (Replaces: 8066184)			Immediately	$ 51.02
30	3400500		Bolt			Immediately	$ 13.37
31	WP348780		Base, Motor   (Replaces: 348780)			Immediately	$ 121.57
32	341241		Belt, Drive   (Replaces: W10131364)			Immediately	$ 18.15
33	W11751471		Strike, Door   (Replaces: W10601014)				$ 7.41
34	WP691366		Idler Assembly   (Replaces: 691366)			Immediately	$ 22.47
35	WP695737		Door, Rear   (Replaces: 695737)				$ 254.56
36	W10861223		Door, Front (white)   (Replaces: W10714515)				$ 222.17
37	W10861225		Handle, Door (white)   (Replaces: W10714516)			Immediately	$ 54.26
38	W11035878		Assembly, Seal And Bearing   (Replaces: W10803476)			Immediately	$ 78.78
39	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.87
40	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.85
41	W10811916		Plug, Front Panel (white)   (Replaces: 8564457)				$ 15.71
42	W11715722		Hinge, Top   (Replaces: W10641296)				$ 7.80
43	W10850756		Screw   (Replaces: W10773242)				$ 7.76
44	WPW10157932		Seal, Foam   (Replaces: W10316529)			Immediately	$ 8.05
45	W10316619		Seal, Spill Guard				$ 26.87
46	W10641295		Bracket, Rear				$ 39.18
28A	WP8066057		Hinge, Door (left)   (Replaces: 8066057)				$ 96.14
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 8.55

    View Diagram in Separate Window       Print Part List
