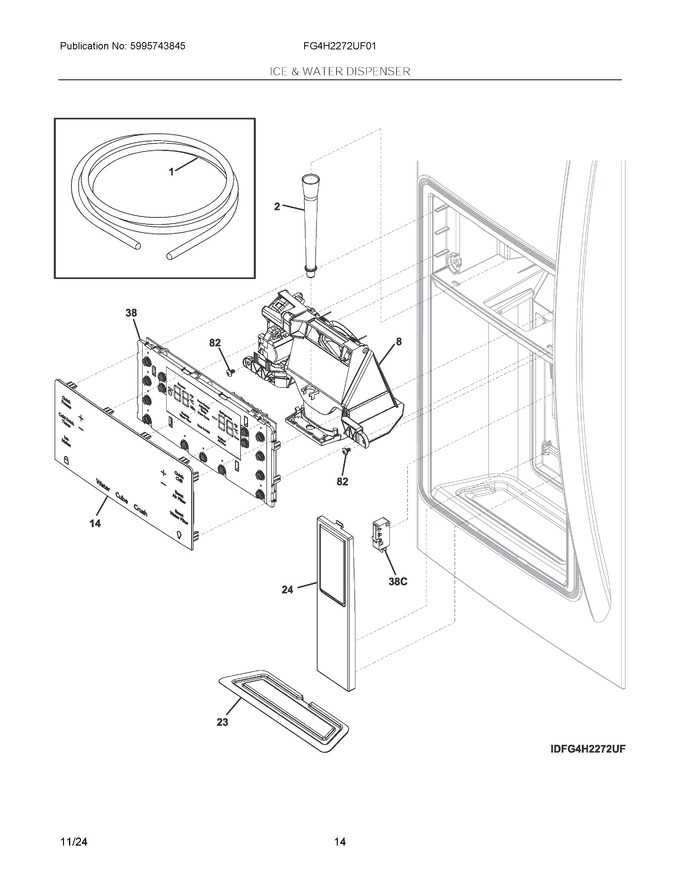

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304524353 | Tube, Double Valve, To Dispenser (Replaces: 5304519193) |
|
Immediately | $ 40.06 | ||||
| 2 | 5304519194 | Guide, Water Tube, Dispenser |
|
$ 12.81 | |||||
| 8 | 5304530070 | Dispenser Assembly, Ice & Water (Replaces: 5304519195) |
|
Immediately | $ 214.81 | ||||
| 14 | 5304519196 | Panel, User Interface, Dispenser |
|
Immediately | $ 194.75 | ||||
| 23 | 5304526843 | Drip Tray, Water, Dispenser (Replaces: 5304519197) |
|
- | |||||
| 24 | 5304519198 | Paddle Assembly, Dispenser |
|
Immediately | $ 44.66 | ||||
| 38 | 5304528575 | Pc Board Display, Assembly, Dispesner, W/housing (Replaces: 5304519200) |
|
Immediately | $ 408.98 | ||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.25 (Replaces: 241953907) |
|
Immediately | $ 19.01 | ||||
| 38C | 5304523072 | Switch, Disp Paddle (Replaces: 5304519201) |
|
Immediately | $ 51.18 | ||||
| NI | 242200102 | Clip, Tubing , 90 Deg Elbow |
|
$ 11.81 | |||||
| NIA | 5304519199 | Spring, Paddle Assembly |
|
Immediately | $ 6.79 |
