01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

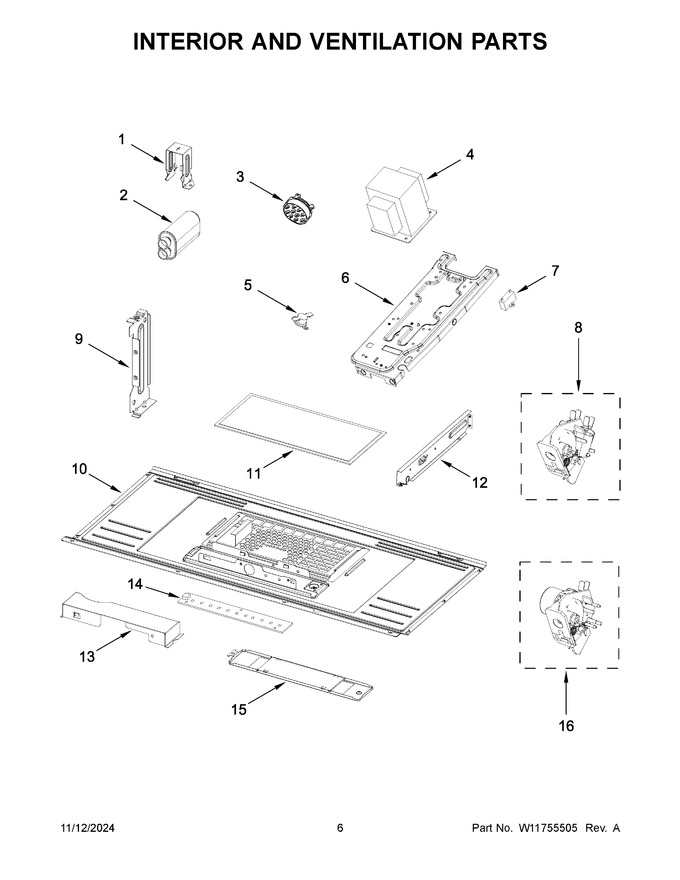

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10532063 | Bracket, Capacitor |
|
$ 29.69 | |||||
| 2 | W11818020 | Capacitor, High Voltage (Replaces: W11335495) |
|
- | |||||
| 3 | W10557536 | Sensor, Humidity |
|
$ 127.30 | |||||
| 4 | W11545872 | Transformer, High Voltage (Replaces: W11540982) |
|
$ 268.79 | |||||
| 5 | W11574181 | Thermostat, Cavity (Replaces: W11397274) |
|
Immediately | $ 43.63 | ||||
| 6 | W11520831 | Chassis |
|
Immediately | $ 65.88 | ||||
| 7 | W11405833 | Capacitor, Hood Motor |
|
$ 44.37 | |||||
| 8 | W11753215 | Assembly, Upper Interlock (Replaces: W11732155) |
|
- | |||||
| 9 | W10313275 | Bracket, Top Cavity |
|
$ 35.62 | |||||
| 10 | W11295401 | Panel, Bottom |
|
$ 134.70 | |||||
| 11 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 15.42 | ||||
| 12 | W11295335 | Support, Ntc |
|
- | |||||
| 13 | W11757027 | Reflector, Lamp (Replaces: W11717784) |
|
- | |||||
| 14 | W11662697 | Light Strip, Led (Replaces: W11573514) |
|
$ 44.42 | |||||
| 15 | W11753076 | Holder, Lamp |
|
- | |||||
| 16 | W11753216 | Assembly, Lower Interlock (Replaces: W11732156) |
|
$ 65.46 |
