01 - Cover Sheet

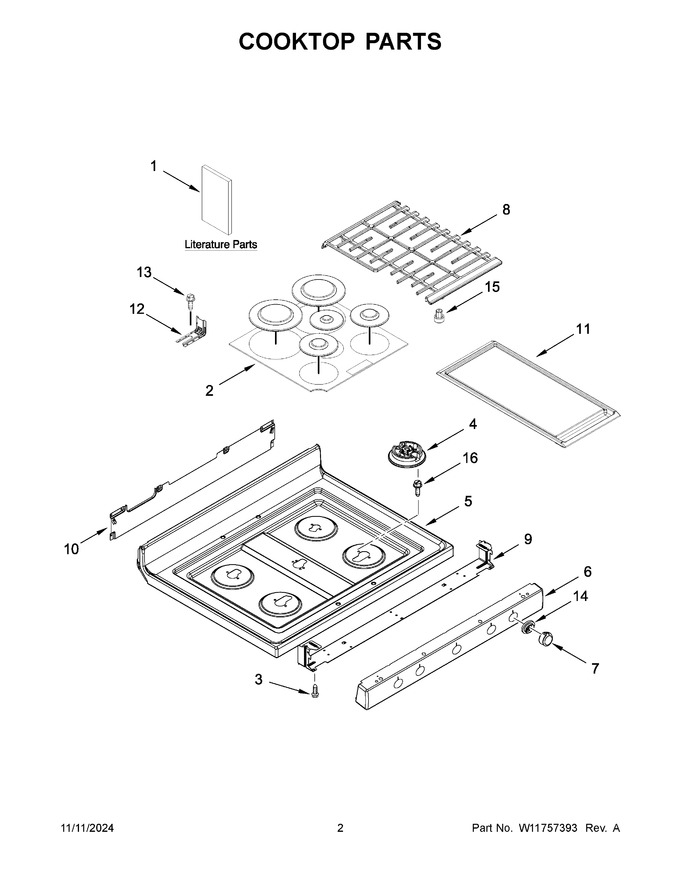

02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Manifold Parts
06 - Door Parts
07 - Drawer Parts
08 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | W11369523 | Burner Cap Kit (black (set Of 5)) |
|
$ 95.53 | |||||
| 3 | WPW10067840 | Screw (Replaces: W10067840) |
|
$ 8.30 | |||||
| 4 | W11435630 | Spreader, Flame (left Front And Right Front) (Replaces: W11352018) |
|
Immediately | $ 82.12 | ||||
| 5 | W11454367 | Cooktop (black) (Replaces: W11418086) |
|
Immediately | $ 435.20 | ||||
| 6 | W11084230 | Panel, Manifold (black Stainless) (Replaces: W10861036) |
|
$ 347.19 | |||||
| 7 | W11030413 | Knob (stainless) (Replaces: W10786063) |
|
Immediately | $ 76.20 | ||||
| 8 | W11758689 | Grate Kit (black (set Of 2)) (Replaces: W11690461) |
|
- | |||||
| 9 | W11379946 | Manifold Panel Bracket |
|
- | |||||
| 10 | W11379358 | Rear Gas Cooktop Bracket |
|
- | |||||
| 11 | W10432544 | Griddle |
|
Immediately | $ 56.67 | ||||
| 12 | W11839019 | Bracket, Anti-tip (Replaces: W11379945) |
|
Immediately | $ 28.54 | ||||
| 13 | 7101P48560 | Screw, Anti-tip Kit |
|
- | |||||
| 14 | W10814133 | Bezel (stainless (kit Of 5)) (Replaces: W10785119) |
|
Immediately | $ 113.38 | ||||
| 15 | W10919249 | Bumper, Grate (Replaces: W10465081) |
|
Immediately | $ 13.18 | ||||
| 16 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 14.73 | ||||
| 1A | W11565451 | Tech Sheet |
|
- | |||||
| 1B | W11645711 | Quick Start Guide |
|
- | |||||
| 4A | W11435659 | Spreader, Flame (left Rear And Center) (Replaces: W11352020) |
|
$ 84.85 | |||||
| 4B | W11435657 | Spreader, Flame (right Rear) (Replaces: W11352021) |
|
$ 84.43 | |||||
| NI | W11461074 | Harness, Main |
|
$ 176.16 | |||||
| NI | WPW10182767 | Tie, Manifold Wire (Replaces: W10182767) |
|
$ 7.30 | |||||
| NI | 16515 | Clip, Harness (Replaces: 313438) |
|
$ 20.53 | |||||
| NI | W11161843 | Harness, Bake And Broil (Replaces: W10753750) |
|
$ 216.55 | |||||
| NI | 3400964 | Clip, Wire (Replaces: 3196520) |
|
$ 89.00 | |||||
| NI | 3196896 | Clip, Wire |
|
- | |||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- | |||||
| NI | W10334923 | Clip, Gas Wiring |
|
- |
