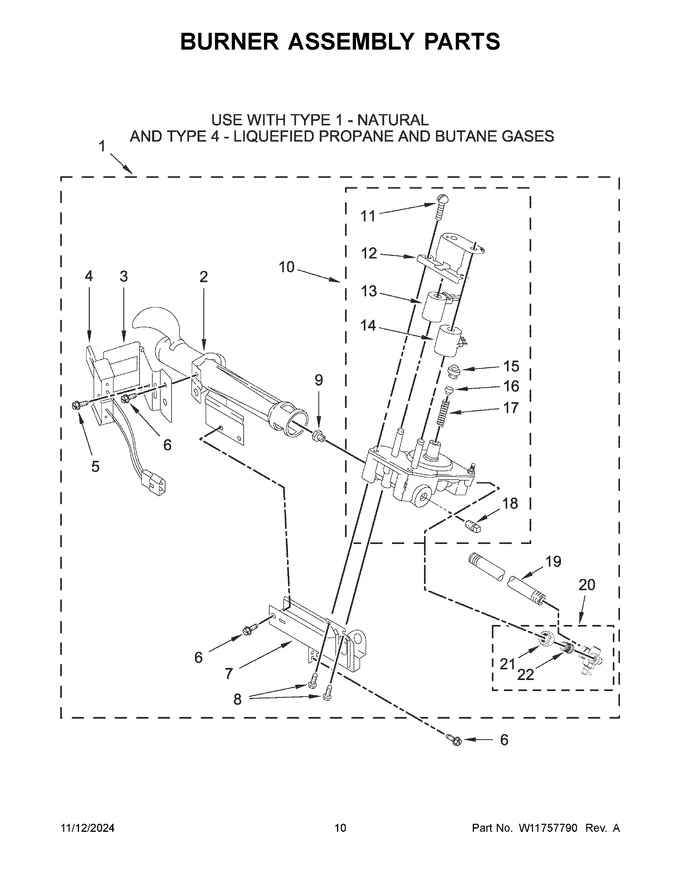

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11676914 | Burner Assembly (Replaces: W11566859) |
|
- | |||||
| 2 | WP693140 | Tube, Burner (Replaces: 688617) |
|
$ 188.87 | |||||
| 3 | WP694298 | Bracket, Ignitor (Replaces: 694298) |
|
$ 27.22 | |||||
| 4 | 279311 | Ignitor (Replaces: 686590) |
|
Immediately | $ 78.90 | ||||
| 5 | WPW10366705 | Screw (Replaces: W10366705) |
|
$ 7.88 | |||||
| 6 | WP681414 | Screw (Replaces: 343641) |
|
Immediately | $ 8.47 | ||||
| 7 | 3389871 | Base, Burner |
|
$ 83.25 | |||||
| 8 | WP693995 | Screw (Replaces: 3387057) |
|
Immediately | $ 7.55 | ||||
| 9 | 3397656 | Orifice, Burner (type 1 (natural Gas)) |
|
- | |||||
| 10 | 279923 | Valve, Gas (complete) 60 Hz (Replaces: 8281911) |
|
Immediately | $ 286.03 | ||||
| 11 | 694421 | Screw, Coil |
|
- | |||||
| 12 | 694538 | Bracket, Coil |
|
$ 72.05 | |||||
| 13 | 279834 | Coil, 60 Hz. (2 Terminal) (main) (Replaces: 694540) |
|
Immediately | $ 32.85 | ||||
| 14 | 279834 | Coil, 60 Hz (split) (3 Terminal) (pilot Position) (Replaces: 694539) |
|
Immediately | $ 32.85 | ||||
| 15 | WP694424 | Leak, Limiter (Replaces: 694424) |
|
$ 36.30 | |||||
| 16 | WP694423 | Screw, Regulator Adjustment (Replaces: 694423) |
|
$ 7.30 | |||||
| 17 | WP694422 | Spring, Regulator (Replaces: 694422) |
|
$ 25.48 | |||||
| 18 | W10295523 | Plug, Pipe (Replaces: 239822) |
|
- | |||||
| 19 | W10097610 | Pipe, Gas Supply |
|
- | |||||
| 20 | 697441 | Valve, Gas |
|
- | |||||
| 21 | 233076 | Nut, Compression |
|
$ 43.19 | |||||
| 22 | 3393767 | Pipe, Tail |
|
$ 144.63 | |||||
| NI | 49572A | Conversion Kit (type 1 And 2) To Type (4) L.p.g. |
|
Immediately | $ 36.19 | ||||
| NI | ARI7C4B781E09F4C135E8A56A812FBF5A4D | Following Parts Not Illustrated |
|
- |
