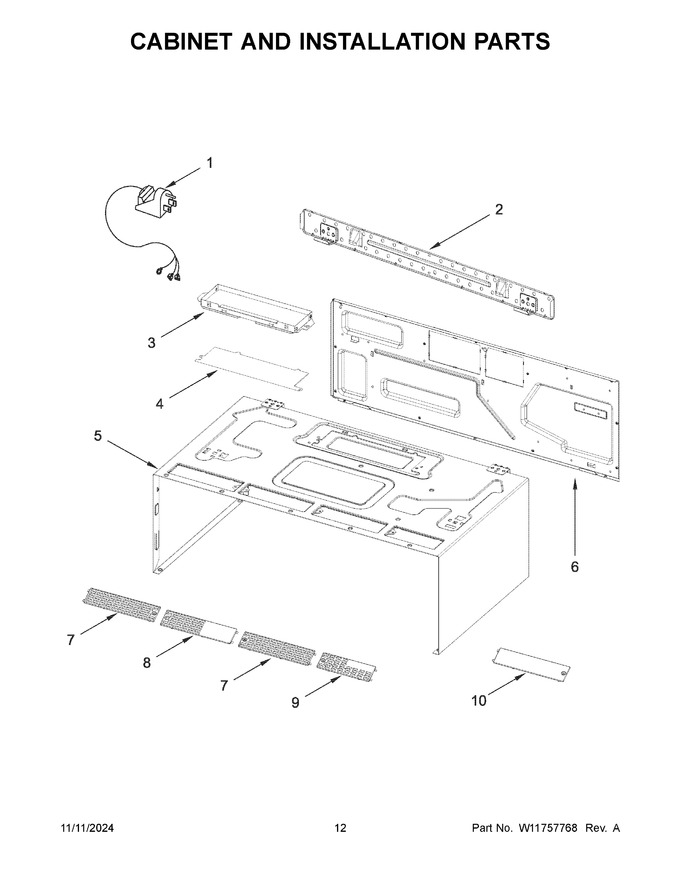

01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11187360 | Cord, Power |
|
Immediately | $ 112.23 | ||||
| 2 | W11025649 | Plate, Mounting |
|
Immediately | $ 24.69 | ||||
| 3 | W10843943 | Damper (Replaces: W10748710) |
|
Immediately | $ 73.04 | ||||
| 4 | W11757140 | Cover, Exhaust (black) (Replaces: W11757086) |
|
$ 104.02 | |||||
| 5 | W11745052 | Case, Outer (stainless) (Replaces: W11702643) |
|
$ 223.28 | |||||
| 6 | W11360416 | Backplate, Oven |
|
$ 77.48 | |||||
| 7 | W11086309 | Grille, Vent (long) (stainless) |
|
$ 114.65 | |||||
| 8 | W11095781 | Grille, Vent (light Access) (stainless) |
|
$ 114.65 | |||||
| 9 | W11086310 | Grille, Vent (short) (stainless) |
|
$ 114.64 | |||||
| 10 | W11397086 | Cover, Vent (long) (stainless) (Replaces: W11095767) |
|
Immediately | $ 69.06 | ||||
| 5A | W11745055 | Case, Outer (black Stainless) (Replaces: W11702644) |
|
- | |||||
| NI | W11745241 | Miscellaneous Parts, Harness, Main (Replaces: W11659045) |
|
- | |||||
| NI | W11745249 | Miscellaneous Parts, Harness, Hmi To Door Hinge A07 (Replaces: W11659051) |
|
- | |||||
| NI | W11745245 | Miscellaneous Parts, Harness, Door Hinge To Acu (Replaces: W11659050) |
|
- | |||||
| NI | W10821385 | Miscellaneous Parts, Hardware, Installation |
|
Immediately | $ 103.72 | ||||
| NI | W11707572 | Miscellaneous Parts, Signal Harness, Door & Odm To Acu (Replaces: W11577230) |
|
$ 33.25 |
