Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 ARI9208FF59B665205FA02090F61BA46518 Liner (not A Seviceable Part) Appelez-nous -
2 WPW10318948 Shelf, Wire   (Replaces: W10318948) Special Order $ 155.23

3 2215823 Clip, Air Duct   (Replaces: 2315163) Special Order $ 10.94

4 W11396033 Switch, Light   (Replaces: W10847849) In-Stock Immediately $ 37.30

5 WPW10318947 Shelf, Wire   (Replaces: W10318947) Special Order $ 91.81

6 W11577967 Bin, Freezer   (Replaces: W11427432) Special Order $ 96.30

7 WPW10130299 Cup, Shelf   (Replaces: W10130299) In-Stock Immediately $ 14.70

8 WP3-24004-109 Screw   (Replaces: W10191954) Special Order $ 9.14

9 2196206 Stud, Support Appelez-nous -
10 WPW10318961 Shelf, Wire   (Replaces: W10318961) In-Stock Immediately $ 81.55

11 718257 Screw   (Replaces: 489100) Appelez-nous -
12 W10845583 Slide, Ice Container (right) Special Order $ 130.12

12A W10845585 Slide, Ice Container (left) Special Order $ 139.41

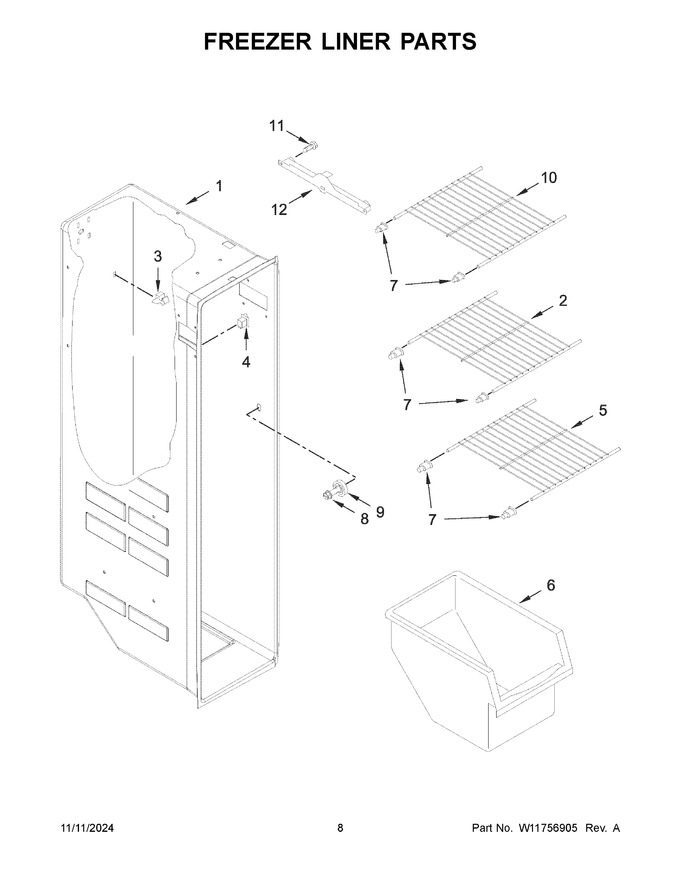

    View Diagram in Separate Window     Print Icon   Print Part List
