SELECT A DIAGRAM

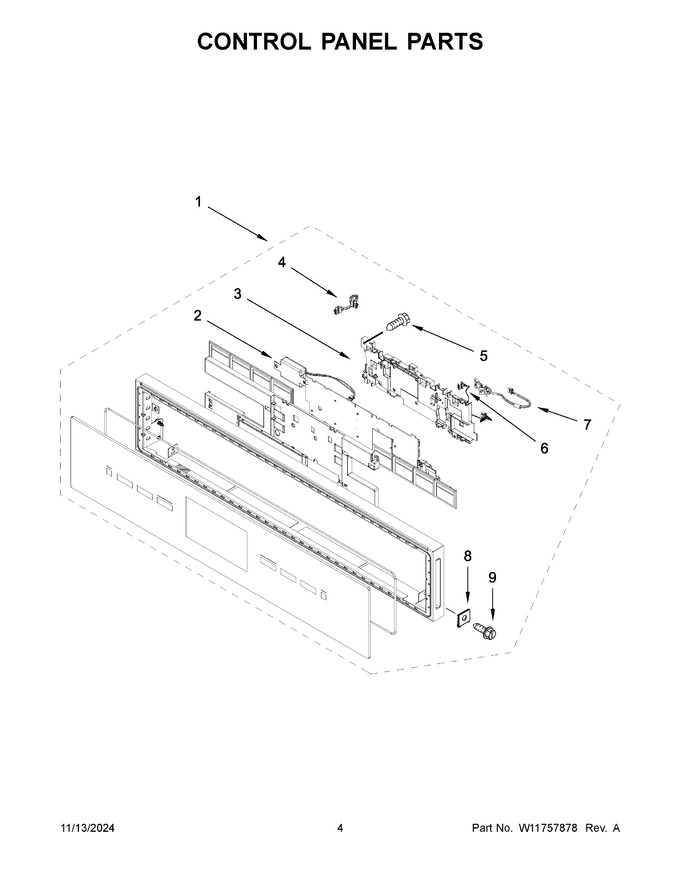

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11598163 | Assembly, Control Panel (black) (Replaces: W11301923) |
|
$ 1,660.73 | |||||
| 2 | W11123146 | Speaker Assembly (Replaces: W10568405) |
|
$ 77.08 | |||||
| 3 | W10668510 | Housing |
|
$ 100.16 | |||||
| 4 | W10566973 | Harness, Keypad (left To Center) |
|
$ 78.28 | |||||
| 5 | W10489172 | Screw |
|
$ 11.41 | |||||
| 6 | W10524350 | Harness, Keypad (right To Center) |
|
$ 74.49 | |||||
| 7 | W10575307 | Jumper Harness, Power Supply |
|
Immediately | $ 165.56 | ||||
| 8 | WP4450118 | Nut (Replaces: 4450118) |
|
$ 7.95 | |||||
| 9 | W11602625 | Screw (black) (Replaces: W11339492) |
|
$ 14.02 |
