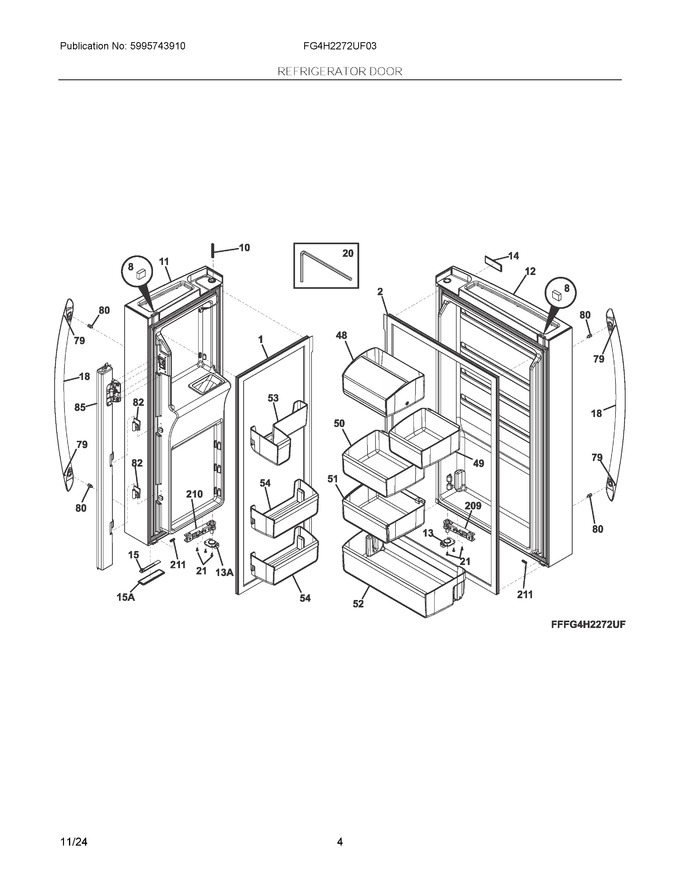

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304529569 | Gasket, Door, Lh Fresh Food (Replaces: 811988533) |
|
$ 210.81 | |||||
| 2 | 5304529576 | Gasket, Door, Rh Fresh Food (Replaces: 811988553) |
|
$ 212.38 | |||||
| 8 | 5304519044 | Magnet, Reed Switch |
|
Immediately | $ 21.06 | ||||
| 10 | 5304519067 | Spring, Tube Protection |
|
Immediately | $ 11.80 | ||||
| 11 | 5304537687 | Door Assembly, Outer, Stainless, Lh Fresh Food, Disp Side (Replaces: 5304519068) |
|
$ 524.63 | |||||
| 12 | 5304531708 | Door Assembly, Outer, Stainless, Rh Fresh Food (Replaces: 5304519069) |
|
$ 282.16 | |||||
| 13 | 5304519070 | Stop, Assembly, Rh Door |
|
$ 16.01 | |||||
| 14 | 5304512150 | Nameplate, Chrome , Frig Gallery |
|
Immediately | $ 64.61 | ||||
| 15 | 5304525264 | Light Board, 3 Led Cluster, 6500k (Replaces: 242196211) |
|
Immediately | $ 65.88 | ||||
| 18 | 5304519072 | Handle, Door, Stainless, Fresh Food |
|
$ 225.82 | |||||
| 20 | 241982136 | Mounting Kit, Handle, Allen Wrench, W/instructions (Replaces: 241982133) |
|
$ 22.69 | |||||
| 21 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 48 | 140045259011 | Bin Assembly, Flex, Door, Dairy (Replaces: 5304519073) |
|
$ 85.00 | |||||
| 49 | 5304519074 | Bin, Flex, 1/3 Width, Door |
|
$ 95.15 | |||||
| 50 | 5304519075 | Bin, Flex, 2/3 Width, Door |
|
$ 98.48 | |||||
| 51 | 5304538424 | Bin Assembly, Flex, Door, Slide Adjust (Replaces: 5304519076) |
|
$ 84.35 | |||||
| 52 | 140073434015 | Bin, Fixed, Door Bottom (Replaces: 5304519077) |
|
$ 127.16 | |||||
| 53 | 5304519078 | Bin, Fixed, Small, Door, Ice Chute |
|
$ 61.86 | |||||
| 54 | 5304519079 | Bin, Fixed, Lh Door |
|
$ 84.12 | |||||
| 79 | 218755402 | Screw-set, 10-32 X .500 In |
|
Immediately | $ 36.67 | ||||
| 80 | 5304519063 | Screw, Handle Mounting |
|
Immediately | $ 12.75 | ||||
| 82 | 5304519080 | Hinge, Flip Mullion |
|
Immediately | $ 12.69 | ||||
| 85 | 5304519081 | Mullion Assembly, Flip, W/heater |
|
Immediately | $ 176.51 | ||||
| 209 | 5304526201 | Closer Assembly, Door, Rh, Mechanical (Replaces: 5304508014) |
|
Immediately | $ 94.36 | ||||
| 210 | 5304526202 | Closer Assembly, Door, Lh, Mechanical (Replaces: 5304508015) |
|
Immediately | $ 109.27 | ||||
| 211 | 5304519083 | Bumper, Door, Bottom |
|
- | |||||
| 13A | 5304519071 | Stop, Assembly, Lh Door |
|
$ 16.07 | |||||
| 15A | 5304519049 | Lens, Led Light |
|
$ 11.80 | |||||
| NI | 242200102 | Clip, Tubing , 90 Deg Elbow |
|
$ 11.81 | |||||
| NIA | 241641505 | Screw, Hilo Phil Pn, .5", White |
|
- | |||||
| NIB | 5304519082 | Heater, Flip Mullion |
|
$ 67.73 |
