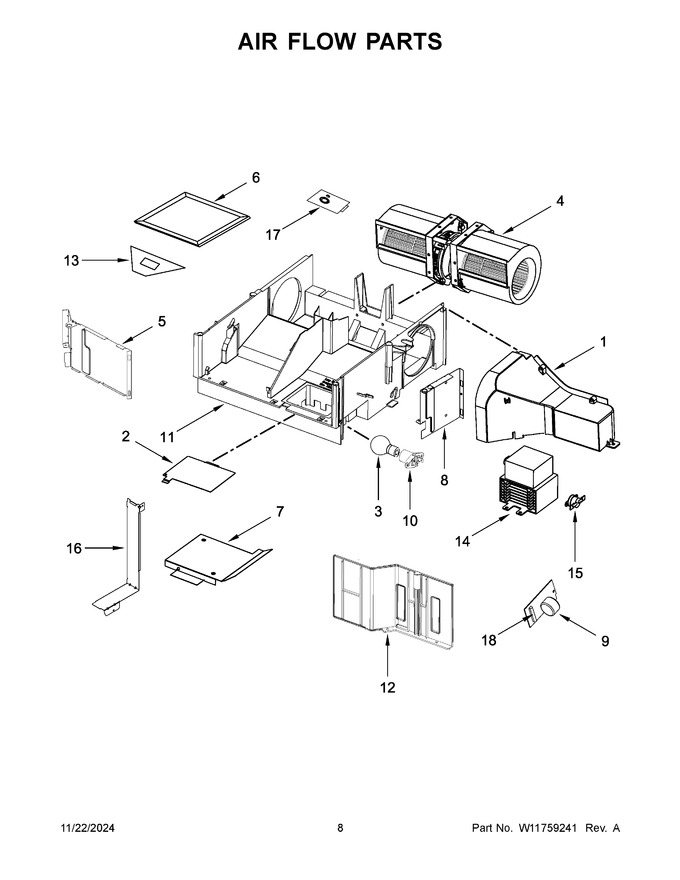

05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10471570 | Deflector, Air |
|
- | |||||
| 2 | 8206382 | Cover, Lamp |
|
$ 9.17 | |||||
| 3 | W11556218 | Bulb, Lamp (Replaces: W11541696) |
|
$ 14.27 | |||||
| 4 | W11746340 | Motor, Hood Fan (Replaces: W11662234) |
|
$ 116.70 | |||||
| 5 | W10827799 | Plate, Air Guide Sealing |
|
- | |||||
| 6 | W10892387 | Filter, Charcoal (Replaces: W10845250) |
|
Immediately | $ 17.72 | ||||
| 7 | W10845672 | Guide, Air |
|
- | |||||
| 8 | W10828079 | Plate, Right Sealing |
|
- | |||||
| 9 | WPW10531156 | Board, Filter (Replaces: W10531156) |
|
Immediately | $ 56.88 | ||||
| 10 | WPW10210878 | Socket, Cavity Lamp (Replaces: W10210878) |
|
Immediately | $ 34.87 | ||||
| 11 | W10828030 | Baseplate, Air Guide |
|
$ 107.01 | |||||
| 12 | W11520832 | Shield, Finger |
|
- | |||||
| 13 | W11746327 | Socket, Motor Wire (Replaces: W11321628) |
|
- | |||||
| 14 | W11753208 | Magnetron (Replaces: W11570274) |
|
Immediately | $ 155.80 | ||||
| 15 | W10832024 | Thermostat, Magnetron |
|
$ 90.92 | |||||
| 16 | W10828038 | Cover, Airguide Inlet |
|
- | |||||
| 17 | W11590866 | Sensor, Humidity (Replaces: W11381423) |
|
$ 70.78 | |||||
| 18 | W11707984 | Fuse (Replaces: W10422951) |
|
Immediately | $ 45.85 |
