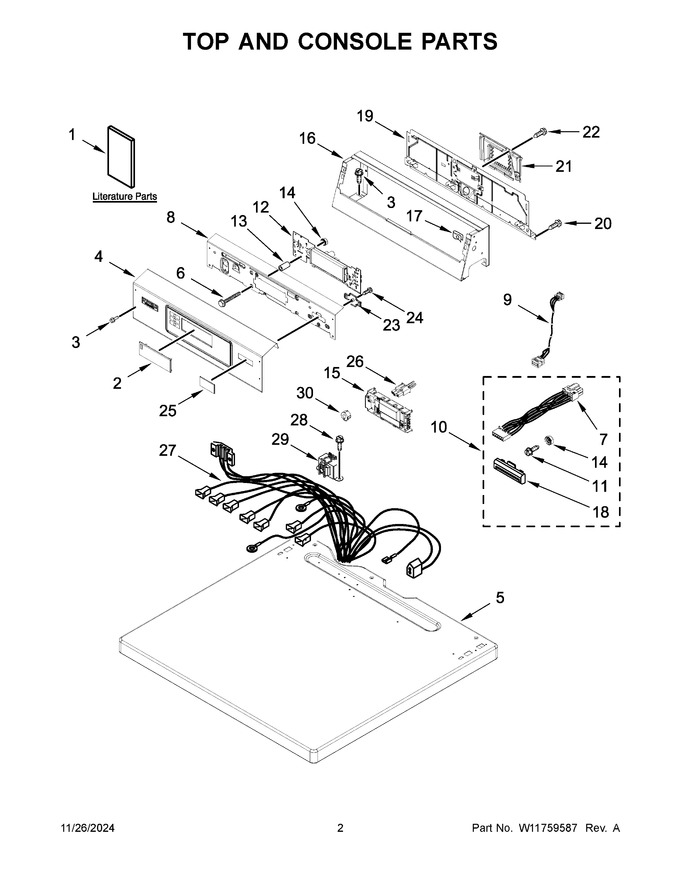

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Burner Assembly Parts
06 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11696096 | Installation Instructions |
|
- | |||||
| 2 | W11637765 | Cover, Display (Replaces: W11565137) |
|
$ 69.59 | |||||
| 3 | WPW10131119 | Screw (Replaces: W10386302) |
|
$ 7.30 | |||||
| 4 | W11101036 | Fascia (Replaces: W10845284) |
|
$ 546.91 | |||||
| 5 | WPW10136704 | Top (white) (Replaces: W10136704) |
|
$ 273.45 | |||||
| 6 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 7 | W11760234 | Card Reader, Harness (Replaces: W11512926) |
|
- | |||||
| 8 | W11760232 | Bracket, Control (Replaces: W11407433) |
|
- | |||||
| 9 | W11743888 | Harness, Ui (Replaces: W11554061) |
|
- | |||||
| 10 | W11569393 | Card Reader, Conversion Kit |
|
- | |||||
| 11 | WPW10143462 | Screw (Replaces: W10143462) |
|
$ 6.30 | |||||
| 12 | W11759236 | Control, User Interface (Replaces: W11456058) |
|
- | |||||
| 13 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 14 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 9.23 | |||||
| 15 | W11743884 | Control Board (Replaces: W11487487) |
|
- | |||||
| 16 | W11124005 | Console |
|
$ 238.42 | |||||
| 17 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 8.10 | |||||
| 18 | WPW10131115 | Bezel (Replaces: W10131115) |
|
$ 8.90 | |||||
| 19 | W11760235 | Panel, Rear (console) (Replaces: W11447701) |
|
- | |||||
| 20 | WP488729 | Screw (Replaces: 3390647) |
|
Immediately | $ 8.28 | ||||
| 21 | W10819767 | Cover, Terminal Block (Replaces: 8317339) |
|
- | |||||
| 22 | W11808444 | Screw (Replaces: 98139) |
|
- | |||||
| 23 | W11775266 | Retainer, Card Reader Cover (Replaces: W10137770) |
|
- | |||||
| 24 | 3400618 | Screw |
|
$ 67.94 | |||||
| 25 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 26 | W11760233 | Jumper, Switch Service/vault (Replaces: W11512927) |
|
- | |||||
| 27 | W11114147 | Harness, Main |
|
- | |||||
| 28 | WP90767 | Screw (Replaces: 8533971) |
|
Immediately | $ 8.25 | ||||
| 29 | WPW10131839 | Transformer (Replaces: W10131839) |
|
Immediately | $ 140.23 | ||||
| 30 | 3407172 | Choke, Harness |
|
- | |||||
| 1A | W11463414 | Installation Instructions, Card Reader |
|
- | |||||
| 1B | W11692451 | Tech Sheet |
|
- |
