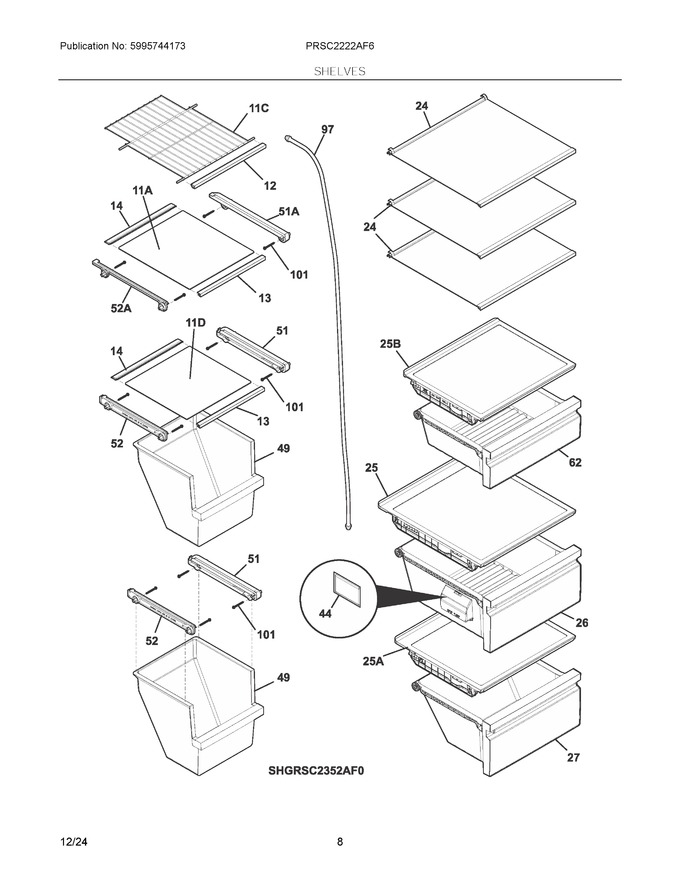

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
12	5304527117		Trim, Wire Shelf, Metalic, Freezer, Front		Appelez-nous	-
13	5304527114		Trim, Glass Shelf, Metalic, Freezer, Front				$ 110.39
14	5304527130		Trim, Freezer Shelf, Rear				$ 113.76
24	5304526916		Shelf Assembly, Glass, Metal Trim			Immediately	$ 172.74
25	140116198163		Crisper Cover, Assembly, Glass, Upper, W/glass-gasket   (Replaces: 5304533283)				$ 100.72
26	5304533286		Crisper Pan, Upper Assy, W/rollers, Trim			Immediately	$ 172.76
27	5304533287		Crisper Pan, Lower Assy, W/rollers, Trim			Immediately	$ 173.34
44	FRPAPKRF		Frig Freshness Booster Refill			Immediately	$ 17.33
49	5304533279		Basket, Sliding, Freezer				$ 67.83
51	5304526976		Hanger, Basket, Rh				$ 18.54
52	5304526977		Hanger, Basket, Lh				$ 18.54
62	5304533288		Deli Pan, Assembly, W/rollers-trim			Immediately	$ 177.22
97	242220119		Tube, Water, 97.5", Natural, Ilter, Secondary Valve			Immediately	$ 33.86
101	218493101		Screw, Hex Washer Head, 8-18ab X 1-3/4				$ 14.96
101A	241637202		Screw, Hex Sems Head, 8-18ab X 1-3/4				$ 5.90
11A	240443358		Shelf-freezer, Glass, Upper				$ 107.86
11C	809078201		Shelf, Pizza		Appelez-nous	-
11D	240443399		Shelf, Freezer, Glass, Lower				$ 112.92
25A	5304533284		Crisper Cover, Assembly, Glass, Lower, W/glass-gasket				$ 87.89
25B	5304533285		Deli Cover, Assembly, Glass, W/glass-gasket				$ 96.01
51A	241514701		Hanger-shelf Glass, Rh				$ 70.88
52A	241514801		Hanger-shelf Glass, Lh				$ 381.94
NIA	241806601		Connector, Water Tube, 5/16 To 5/16, Straight   (Replaces: 242103001)			Immediately	$ 78.40
NIB	242200102		Clip, Tubing, 90 Deg Elbow				$ 11.81
