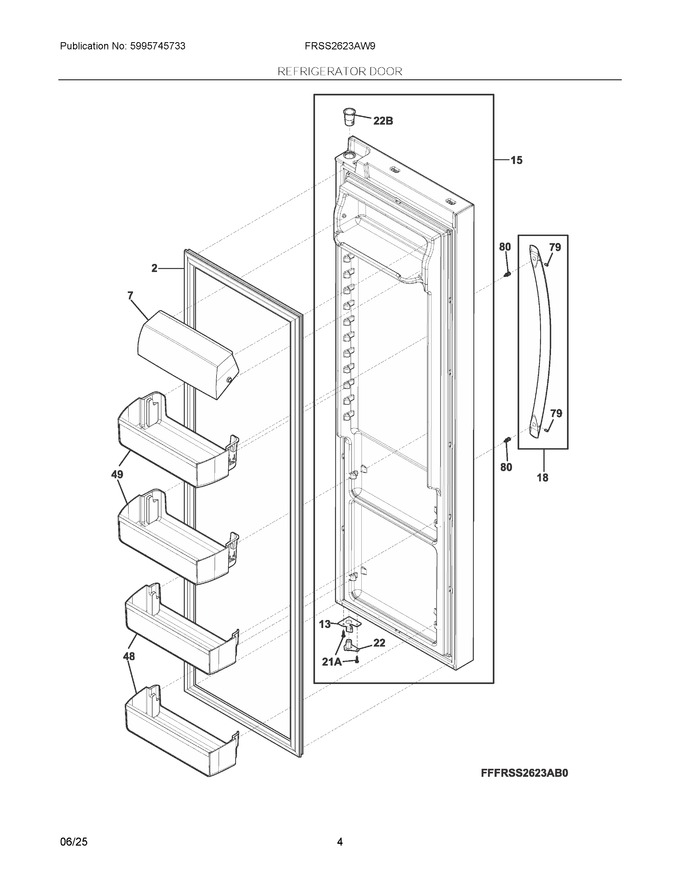

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 241786013 | Gasket, Door, White, Fresh Food, Magnetic (Replaces: 241786001) |
|
Immediately | $ 106.55 | ||||
| 7 | 5304525904 | Cover, Compartment, Dairy |
|
Immediately | $ 68.40 | ||||
| 13 | 5304527379 | Stop, Door, Black, Fresh Food |
|
$ 16.85 | |||||
| 15 | 5304526137 | Door Assembly, Fresh Food, White, Complete |
|
- | |||||
| 18 | 5304536621 | Handle, Door, White, W/set Screws (Replaces: 5304510341) |
|
$ 59.87 | |||||
| 22 | 5304532162 | Bushing, Hinge, Black, Lower |
|
$ 5.57 | |||||
| 48 | 5304536363 | Bin Assembly, 2 Liter, Ff Door (Replaces: 5304525906) |
|
$ 49.72 | |||||
| 49 | 5304536368 | Bin Assembly, Gallon, Ff Door (Replaces: 5304525905) |
|
Immediately | $ 33.74 | ||||
| 79 | 218755405 | Screw, Set, 10-32 X 0.500 (Replaces: 218755407) |
|
Immediately | $ 22.84 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 20.67 | ||||
| 21A | 240442708 | Screw, #10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 9.27 | |||||
| 22B | 241760403 | Bearing, Hinge , Top, Rh Door |
|
Immediately | $ 21.26 |
