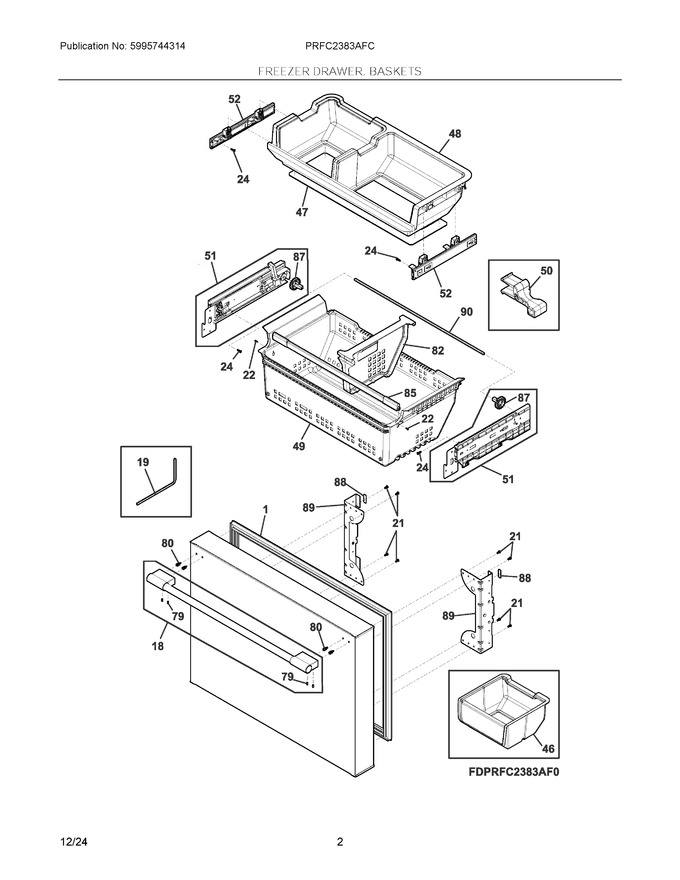

PRFC2383AFC | Leon's : Appliance Model Lookup

Diagram #	Part Number	Description	Availability	Ships	Price
1	5304537408	Gasket		Immediately	$ 95.87
11	5304538057	Door Foamed Fzr Flat S430 Coat	Appelez-nous	-
18	5304535090	S/a Pur-handle Verticle Pro	Appelez-nous	-
19	5304508270	Wrench, Allen, Set Screw		Immediately	$ 23.71
21	241690602	Screw, Quadrex, #10-16 Hilo			$ 11.81
22	241953902	Screw, Quad Hilo, #8-18 X 0.380		Immediately	$ 19.01
24	240383412	Screw, Truss Hd Quad, #10-16 X .750, Zinc			$ 12.71
46	5304532882	Container, Ice, Freezer		Immediately	$ 89.67
47	5304531175	Glass, Basket, Upper			$ 146.73
48	5304537203	Basket-upper Basket Cd Gall &	Appelez-nous	-
49	5304526200	Basket, Freezer, Lower		Immediately	$ 163.97
50	5304501271	Clip, Freezer Basket		Immediately	$ 17.33
51	5304507976	Slide Assembly, Basket Lower, Lh, W/pinion		Immediately	$ 263.08
52	5304537225	S/a Pur-upper Frz Slide Rh Cd	Appelez-nous	-
79	218755405	Screw, Set, 10-32 X 0.500 (Replaces: 218755407)		Immediately	$ 22.84
80	218755504	Screw, Shoulder, #10-ab, Handle Mounting		Immediately	$ 20.67
82	5304529990	Divider, Lower Basker, Freezer	Appelez-nous	-
85	242139301	Beam, Support, Divider, Lower Basket			$ 81.90
87	5304507999	Pinion, Gear			$ 11.80
88	241979601	Bumper, Rubber, White, Upper Basket			$ 25.20
89	5304509676	Bracket, Freezer Drawer, (2)			$ 85.95
90	241770705	Bar, Timing, Gray			$ 56.29
51A	5304507977	Slide Assembly, Basket Lower, Rh, W/pinion		Immediately	$ 280.59
52A	5304537226	S/a Pur-upper Frz Slide Lh Cd		Immediately	$ 50.17
NI	242146401	Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4)		Immediately	$ 15.86
NIB	242039702	Screw, Shoulder, #10-16 Type Ab, Lower Slides, W/washer			$ 4.73
NIB	242039701	Screw, Shoulder, #10-16 Type Ab, Upper Slides, W/washer			$ 14.96
