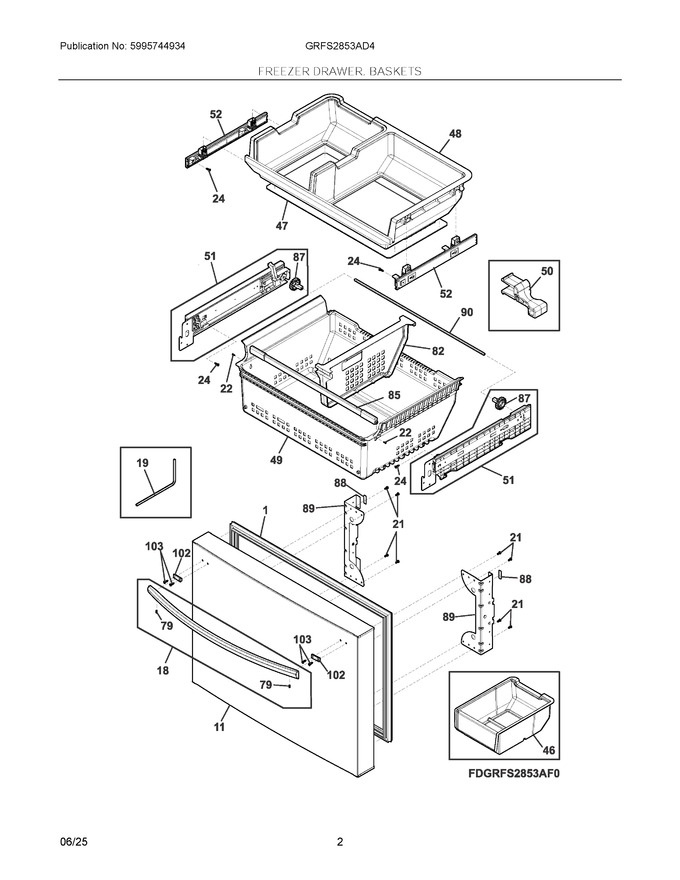

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304537408 | Gasket, Freezer Drawer, Black, Magnetic (Replaces: 5304502762) |
|
Immediately | $ 95.87 | ||||
| 11 | 5304530835 | Drawer Panel, Outer, Black Stainless, Freezer |
|
$ 677.75 | |||||
| 18 | 5304531228 | Handle, Drawer, Black Stainless, Freezer |
|
$ 185.21 | |||||
| 19 | 5304508270 | Wrench, Allen, Set Screw |
|
Immediately | $ 23.71 | ||||
| 21 | 241690602 | Screw, Quadrex , #10-16 Hilo |
|
$ 11.81 | |||||
| 22 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 19.01 | ||||
| 24 | 240383412 | Screw, Truss Hd Quad, #10-16 X .750, Zinc |
|
$ 12.71 | |||||
| 46 | A15207902 | Container, Ice, Freezer |
|
$ 169.31 | |||||
| 47 | 140173321039 | Glass, Basket , Upper (Replaces: 5304531174) |
|
- | |||||
| 48 | 140152078048 | Basket, Freezer , Upper (Replaces: 5304530944) |
|
$ 138.44 | |||||
| 49 | 5304525892 | Basket-frzr, Lower |
|
Immediately | $ 200.71 | ||||
| 50 | 5304501271 | Clip, Freezer Basket |
|
Immediately | $ 17.33 | ||||
| 51 | 5304507978 | Slide Assembly, Basket, Rh Lower, W/pinion |
|
Immediately | $ 284.81 | ||||
| 52 | 5304536913 | Slide Assembly, Basket, Rh Upper (Replaces: 5304531251) |
|
Immediately | $ 56.06 | ||||
| 79 | 218709101 | Screw, Hex Head , 10-32 X 0.500 |
|
$ 7.09 | |||||
| 82 | 5304529930 | Divider, Lower Basket Freezer |
|
$ 44.66 | |||||
| 85 | 242139301 | Beam, Support, Divider , Lower Basket |
|
$ 81.90 | |||||
| 87 | 5304507999 | Pinion, Gear |
|
$ 11.80 | |||||
| 88 | 241979601 | Bumper, Rubber , White , Upper Basket |
|
$ 25.20 | |||||
| 89 | 5304509676 | Bracket, Freezer Drawer , (2) |
|
$ 85.95 | |||||
| 90 | 241770705 | Bar, Timing , Gray |
|
$ 56.29 | |||||
| 102 | 5304504279 | Block-handle Mtg |
|
Immediately | $ 20.56 | ||||
| 103 | 242077302 | Screw, #10 Ab Flat Hd |
|
Immediately | $ 8.66 | ||||
| 51A | 5304507979 | Slide Assembly, Basket Lower, Lh, W/pinion |
|
Immediately | $ 276.70 | ||||
| 52A | 5304536914 | Slide Assembly, Basket, Lh Upper (Replaces: 5304531252) |
|
$ 56.06 | |||||
| NI | 242146401 | Screw, Ser Hex Wash Hd, 1/4-20 X 5/8, (4) |
|
Immediately | $ 15.86 | ||||
| NIB | 242039701 | Screw, Shoulder , #10-16 Type Ab, Upper Slides, W/washer |
|
$ 14.96 | |||||
| NIB | 242039702 | Screw, Shoulder , #10-16 Type Ab, Lower Slides, W/washer |
|
$ 4.73 |
