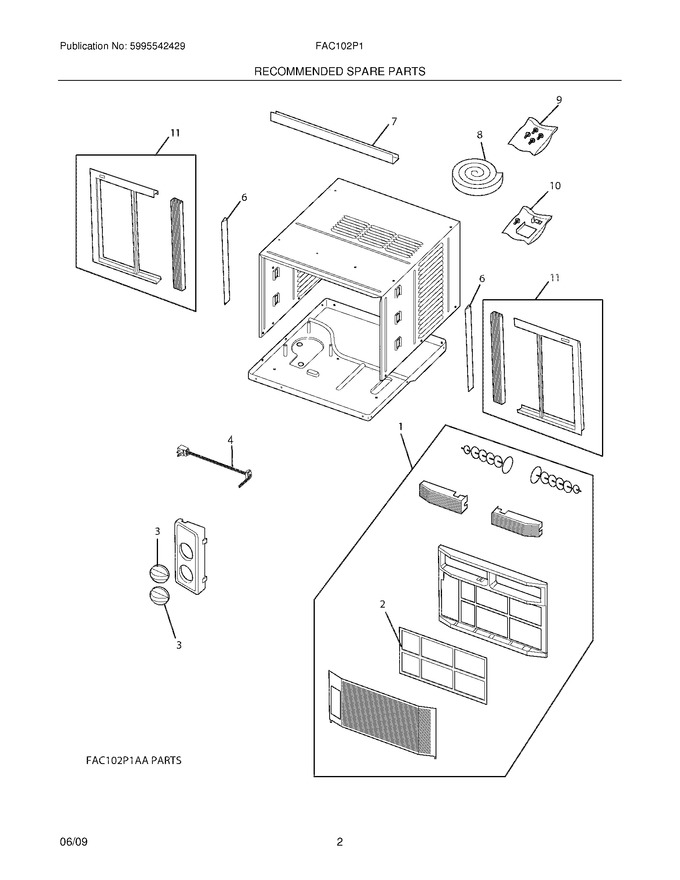

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 5304472217 | Knob Assembly,control ,w/spring |
|
$ 34.44 | |||||
| 6 | 5304472209 | Retainer,shutter ,cabinet Sides |
|
$ 11.48 | |||||
| 7 | 5304472210 | Rail,shutter Track ,top |
|
- | |||||
| 8 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| 9 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 10 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 11 | 5304472208 | Window Filler Kit,slider Panels |
|
- | |||||
| F1 | 5304472231 | Front Assembly,complete Panel |
|
- | |||||
| F2 | 5304472207 | Filter,air |
|
$ 16.33 | |||||
| F4 | 5304472215 | Power Cord,electric ,lcdi |
|
- |
