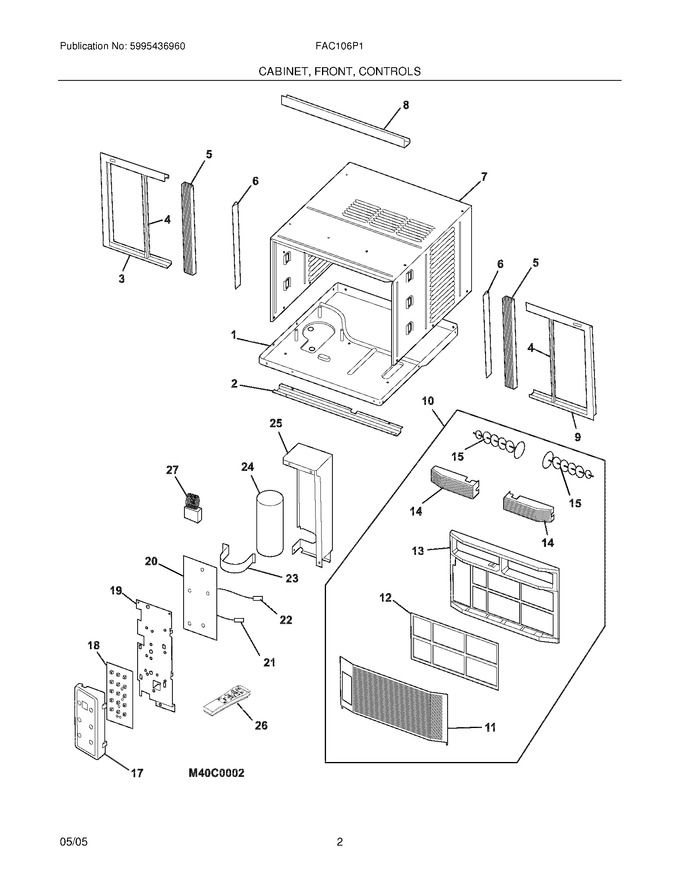

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304436521		Base,unit Chassis		Appelez-nous	-
2	5304436523		Rail,shutter Track ,bottom		Appelez-nous	-
3	5304436544		Frame,shutter Panel ,lh		Appelez-nous	-
4	5304436545		Retainer,shutter Lock				$ 57.80
5	5304436546		Shutter,accordion Panel		Appelez-nous	-
6	5304436547		Retainer,shutter Mount ,cabinet Sides				$ 55.91
7	5304446442		Cabinet,wrapper/sleeve		Appelez-nous	-
8	5304436549		Rail,shutter Track ,top		Appelez-nous	-
9	5304436550		Frame,shutter Panel ,rh				$ 62.11
10	5304436600		Front Assembly,complete Panel ,includes				$ 180.60
11	5304436551		Panel,front Grille ,tilt-out				$ 71.72
12	5304436552		Filter,air ,plastic Frame		Appelez-nous	-
13	5304436553		Frame,front Assembly				$ 92.35
14	5304436554		Louver,horizontal		Appelez-nous	-
15	5304446443		Louvres,vertical				$ 32.92
17	5304436536		Enclosure,control ,pcb Display				$ 39.43
19	5304446441		Panel,ctrl Mtg Board		Appelez-nous	-
23	5304436530		Strap,capacitor Mtg.		Appelez-nous	-
24	5304436525		Capacitor		Appelez-nous	-
25	5304436524		Control Box		Appelez-nous	-
F18	5304436535		Pc Board,display/input				$ 226.64
F20	5304436532		Pc Board,control/power				$ 391.65
F21	5304436543		Sensor,ambient Temp				$ 15.38
F22	5304436542		Sensor,evap Temp ,defrost				$ 44.31
F26	5304436596		Remote Control,transmitter				$ 268.44
F27	5304436529		Ionizer		Appelez-nous	-
NI	5304436538		Control Panel,display ,electronic		Appelez-nous	-
NI	5304458023		Hardware Kit		Appelez-nous	-
