Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304436556 Scroll,blower Housing ,bottom , Appelez-nous -
3 5304436559 Scroll,blower Housing ,top Appelez-nous -
4 5304436558 Door,fresh Air Vent ,with Lever Appelez-nous -
5 5304436564 Guide,vent Door/lever Appelez-nous -
6 5304436565 Cover,blower Scroll ,top Appelez-nous -
10 5304436560 Seal,fan Motor ,rubber Ring , Appelez-nous -
12 5304436582 Capillary Tube,assy W/strainer Special Order $ 103.29

13 5304436574 Discharge Tube Appelez-nous -
F11 5304436566 Evaporator Special Order $ 161.65

F14 5304437082 Compressor Assy Appelez-nous -
F15 5304436571 Condenser Appelez-nous -
F16 5304436569 Suction Tube Appelez-nous -
F2 5304436557 Blower Wheel,centrifugal Fan Appelez-nous -
F7 5304436563 Fan Blade,propeller ,axial Flow Special Order $ 31.50

F8 5304436562 Shroud,fan Housing Special Order $ 103.29

F9 5304446455 Motor-fan Appelez-nous -
NI 5304446449 Cord,electric Service Special Order $ 128.59

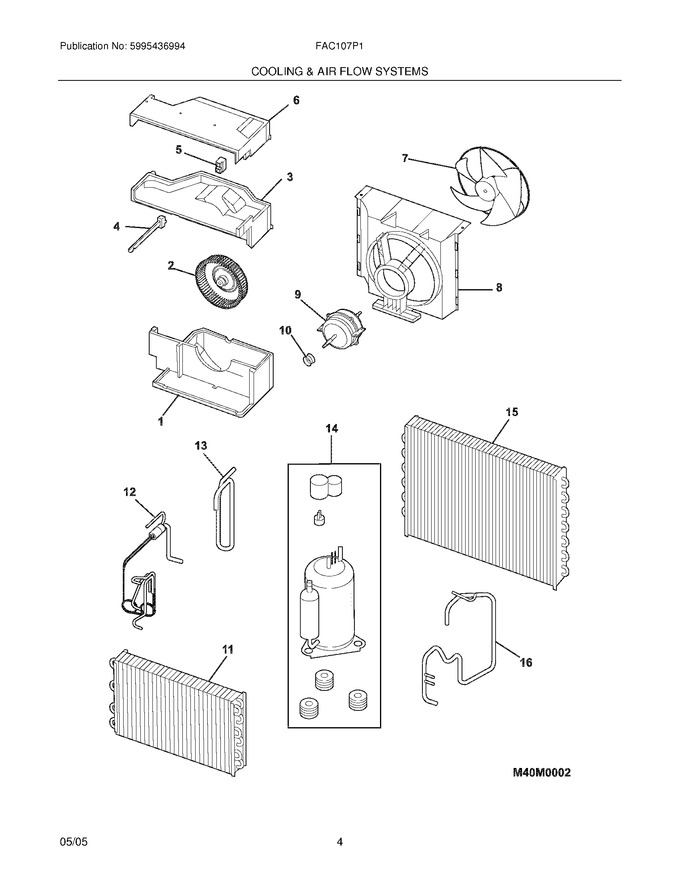

    View Diagram in Separate Window     Print Icon   Print Part List
