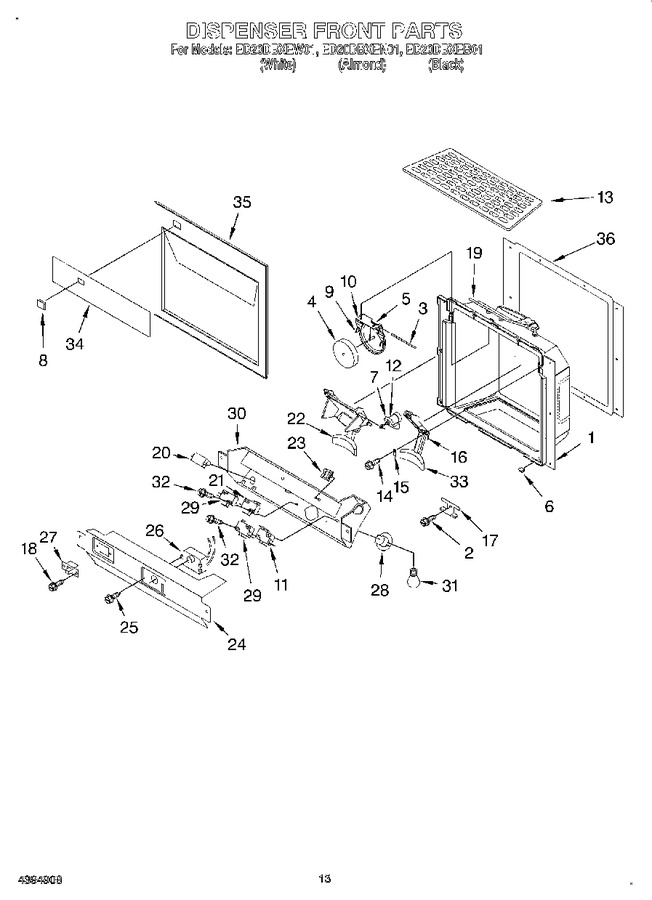

08 - Dispenser Front


09 - Air Flow


10 - Unit


11 - Icemaker, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343828		Housing, Dispenser (includes Heater) (almond)		Appelez-nous	-
1	4343829		Housing, Dispenser (includes Heater) (black)		Appelez-nous	-
1	4343827		Housing, Dispenser (includes Heater) (white)		Appelez-nous	-
2	4343838		Screw		Appelez-nous	-
3	4343946		Pin, Chute Door		Appelez-nous	-
4	4343948		Insulation, Door		Appelez-nous	-
5	4343950		Spring, Chute Door		Appelez-nous	-
6	4343952		Clip		Appelez-nous	-
7	4343953		Retainer, Door Delay		Appelez-nous	-
8	4343626		Cap, Cube/crush Switch (black)		Appelez-nous	-
8	4343624		Cap, Cube/crush Switch (white)		Appelez-nous	-
8	4343625		Cap, Cube/crush Switch (almond)		Appelez-nous	-
9	4343955		Door, Ice		Appelez-nous	-
10	4343949		Bracket, Chute Door		Appelez-nous	-
11	4343963		Switch		Appelez-nous	-
12	4343954		Mechanism Delay		Appelez-nous	-
13	4343679		Grille, Overflow (white)		Appelez-nous	-
13	4343678		Grille, Overflow (black)		Appelez-nous	-
13	4343680		Grille, Overflow (almond)		Appelez-nous	-
14	4343962		Screw		Appelez-nous	-
15	4343947		Clip, Lever (4)		Appelez-nous	-
16	4343951		Spring, Lever		Appelez-nous	-
17	4343823		Clip, Cover		Appelez-nous	-
18	4343974		Screw		Appelez-nous	-
19	W10823511		Tube, Water   (Replaces: 4343701)			Immediately	$ 32.41
20	4343966		Light Switch		Appelez-nous	-
21	4343968		Micro Switch		Appelez-nous	-
22	4343956		Lever, Ice Dispenser (white)		Appelez-nous	-
22	4343957		Lever, Ice Dispenser (almond)		Appelez-nous	-
22	4343958		Lever, Ice Dispenser (black)		Appelez-nous	-
23	4343969		Clip, Wire		Appelez-nous	-
24	4343970		Cover		Appelez-nous	-
25	4343971		Screw		Appelez-nous	-
26	4343972		Switch, Sensor		Appelez-nous	-
27	4343973		Switch, Cube/ Crush		Appelez-nous	-
28	4343967		Lamp Holder		Appelez-nous	-
29	WP10533003		Switch (2)   (Replaces: 4343964)				$ 69.80
30	4343832		Bracket, Control		Appelez-nous	-
31	WP22002263		Bulb, Light   (Replaces: 4343839)			Immediately	$ 13.66
32	4343965		Screw		Appelez-nous	-
33	4343960		Lever, Water Dispenser (almond)		Appelez-nous	-
33	4343959		Lever, Water Dispenser (white)		Appelez-nous	-
33	4343961		Lever, Water Dispenser (black)		Appelez-nous	-
34	4343618		Plaque, Front Cover (white)		Appelez-nous	-
34	4343619		Plaque, Front Cover (almond)		Appelez-nous	-
34	4343620		Plaque, Front Cover (black)		Appelez-nous	-
35	4343623		Front Cover, Housing (black)		Appelez-nous	-
35	4343622		Front Cover, Housing (almond)		Appelez-nous	-
35	4343621		Front Cover, Housing (white)		Appelez-nous	-
36	4343831		Gasket		Appelez-nous	-
