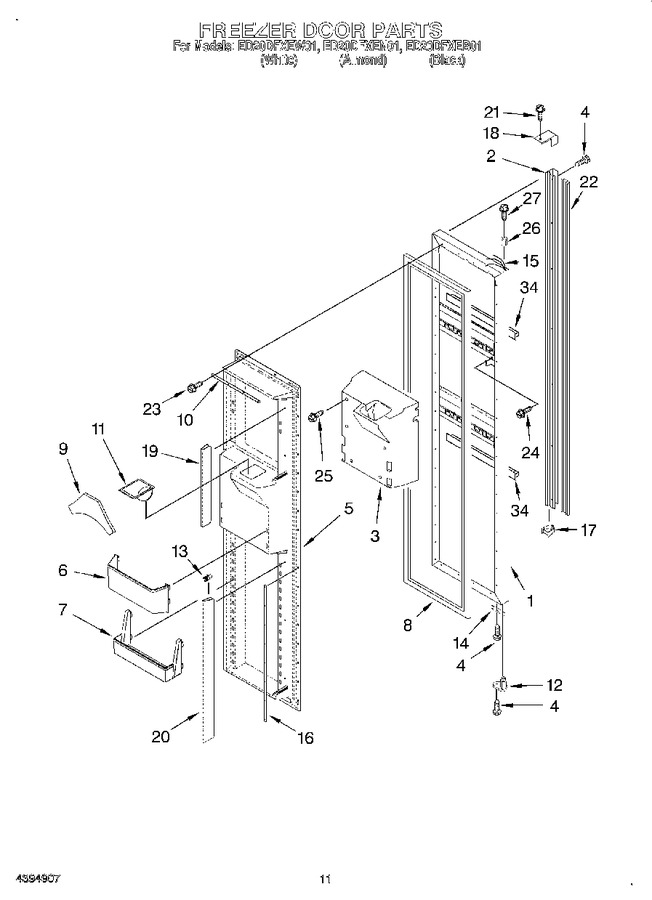

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4343818		Freezer Door Panel (includes Insulation) (black)		Appelez-nous	-
1	4343820		Freezer Door Panel (includes Insulation) (white)		Appelez-nous	-
1	4343819		Freezer Door Panel (includes Insulation) (almond)		Appelez-nous	-
2	4343736		Handle (silver)		Appelez-nous	-
2	4343734		Handle (white)		Appelez-nous	-
2	4343735		Handle (almond)		Appelez-nous	-
3	4343830		Insulation, Dispenser		Appelez-nous	-
4	WP98165		Screw   (Replaces: 4343675)				$ 8.00
5	4343821		Interior Panel		Appelez-nous	-
6	4343747		Trivet, Shelf		Appelez-nous	-
7	4343746		Shelf Bin (4)		Appelez-nous	-
8	4343834		Door Gasket, Magnetic (black)		Appelez-nous	-
8	4343833		Door Gasket, Magnetic (white)		Appelez-nous	-
9	4343634		Seal, Ice Chute		Appelez-nous	-
10	4343824		Retainer (top & Bottom)		Appelez-nous	-
11	4343633		Chute, Ice		Appelez-nous	-
12	R0181181		Door Closer, Upper Cam (black)   (Replaces: 4343940)			Immediately	$ 7.19
12	R0181181		Door Closer, Upper Cam (white)   (Replaces: 4343941)			Immediately	$ 7.19
13	4343825		Clip, Removable Door Dike		Appelez-nous	-
14	4343808		Bracket, Door Stop (almond)		Appelez-nous	-
14	4343807		Bracket, Door Stop (white)		Appelez-nous	-
14	4343806		Bracket, Door Stop (black)		Appelez-nous	-
15	4343826		Harness, Door		Appelez-nous	-
16	4343835		Retainer (side)		Appelez-nous	-
17	4343770		Cap, Bottom (almond)		Appelez-nous	-
17	4343769		Cap, Bottom (white)		Appelez-nous	-
17	4343771		Cap, Bottom (silver)		Appelez-nous	-
18	4343629		Cap, Top (silver)		Appelez-nous	-
18	4343627		Cap, Top (white)		Appelez-nous	-
18	4343628		Cap, Top (almond)		Appelez-nous	-
19	4343836		Removable Door Dike, Top		Appelez-nous	-
20	4343837		Removable Door Dike, Bottom		Appelez-nous	-
21	4343693		Screw		Appelez-nous	-
22	4343743		Insert, Handle (silver)		Appelez-nous	-
22	4343741		Insert, Handle (white)		Appelez-nous	-
22	4343742		Insert, Handle (almond)		Appelez-nous	-
23	4343811		Screw (42)		Appelez-nous	-
24	WP489399		Screw   (Replaces: 4343691)				$ 6.95
25	4343840		Button Plug		Appelez-nous	-
26	4343944		Hinge Sleeve (black)		Appelez-nous	-
26	WP67004977		Hinge Sleeve (white)   (Replaces: 4343945)				$ 7.81
27	4343725		Screw, Ground		Appelez-nous	-
34	8170315		Retainer, Decorative Panel (black)		Appelez-nous	-
34	8170314		Retainer, Decorative Panel (white)		Appelez-nous	-
34	8170316		Retainer, Decorative Panel (almond)		Appelez-nous	-
