SELECT A DIAGRAM
New Model Search:

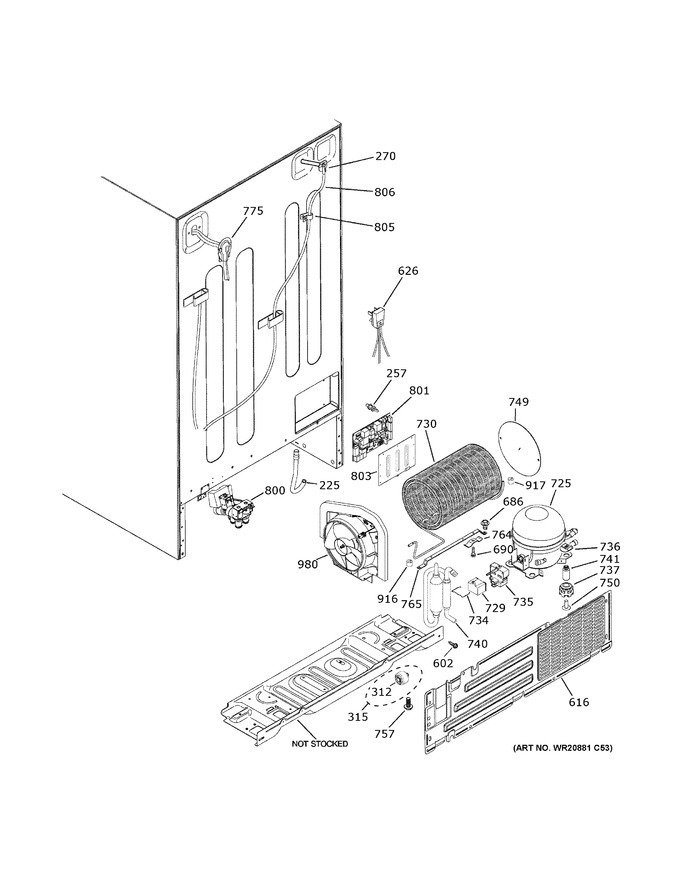

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 225 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 32.88 | ||||
| 257 | WR02X10663 | Stand Off |
|
- | |||||
| 270 | WG03F00304 | Grommet And Tube Asm (Replaces: WR17X11168) |
|
$ 21.44 | |||||
| 312 | WG03L06838 | Wheel Mobility (Replaces: WR02X10695) |
|
$ 17.15 | |||||
| 315 | WR02X11998 | Mobility Wheel Kit |
|
- | |||||
| 602 | WR01X10617 | Scr 1/4-14 Ab Ihw 3/4 S |
|
- | |||||
| 616 | WR01X36628 | Machine Compartment Cover 36" |
|
- | |||||
| 626 | WR23X29305 | Harness Cab Lower |
|
- | |||||
| 686 | WR01X10654 | Scr 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 725 | WR87X42645 | Compressor - Jiaxipera |
|
- | |||||
| 729 | WR55X42725 | Capacitor 10 Uf |
|
- | |||||
| 730 | WR87X41965 | Condenser & Bracket |
|
- | |||||
| 734 | WR02X31516 | Retainer Clip |
|
- | |||||
| 735 | WR55X31513 | Ol Ptcr Combo |
|
- | |||||
| 736 | WR2X8203 | Clip |
|
- | |||||
| 737 | WR02X40305 | Grommet |
|
- | |||||
| 740 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 749 | WR17X13159 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10763 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X37725 | Cover Water Line |
|
- | |||||
| 800 | WR57X36626 | Triple Water Valve |
|
- | |||||
| 801 | WR55X42505 | Main Control Board |
|
- | |||||
| 803 | WR02X40325 | Main Control Board Cover |
|
- | |||||
| 805 | WR1X5278 | Cable Clamp |
|
- | |||||
| 806 | WR01F01881 | Tube Plastic (Replaces: WR17X11625) |
|
$ 14.29 | |||||
| 916 | WR02X13569 | Sound Damper |
|
- | |||||
| 917 | WR02X13573 | Sound Damper |
|
- | |||||
| 980 | WR60X37834 | Condenser Fan Asm Sxs |
|
- |
