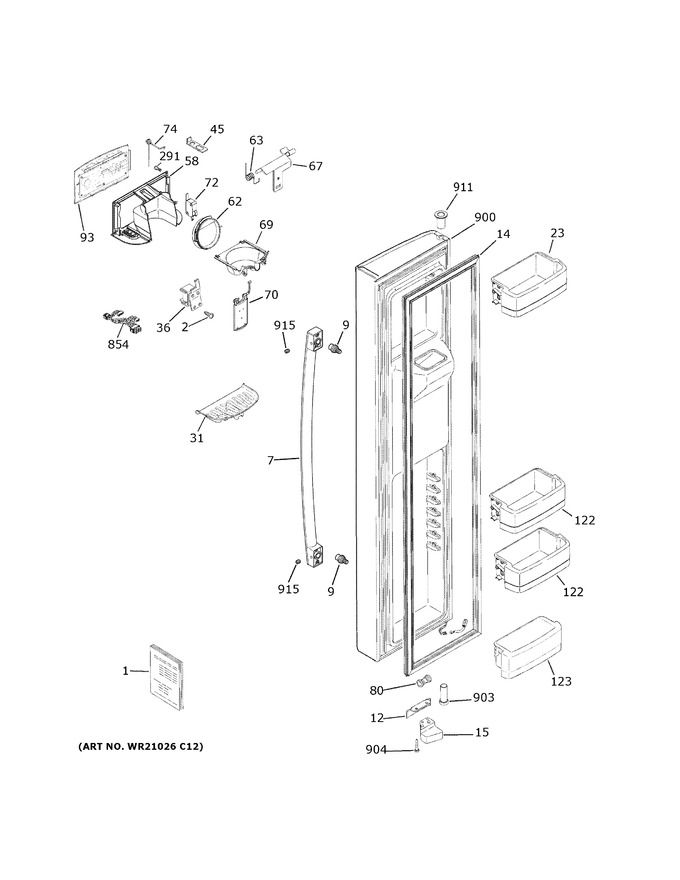

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Freezer Door
Freezer Section
Freezer Shelves
Fresh Food Door
Fresh Food Section
Fresh Food Shelves
Ice Maker & Dispenser
Lokring Connectors
Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-1000523 | Pm Mini Manual And Wiring |
|
- | |||||
| 1 | 49-1000619 | Pm Quick Owners Manual |
|
- | |||||
| 2 | WR02X12257 | Scr 4-10 Pl Pnp 3/4 Ss |
|
- | |||||
| 7 | WR12X31686 | Black Handle Door Asm |
|
- | |||||
| 9 | WR01A01801 | Door Handle Fastener (Replaces: WR01X11007) |
|
Immediately | $ 11.44 | ||||
| 12 | WR01A01018 | Stop Door Black (Replaces: WR02X10782) |
|
$ 35.73 | |||||
| 14 | WR24X20455 | Gasket |
|
- | |||||
| 15 | WR02X10780 | Cam Closure Fz Black |
|
- | |||||
| 23 | WR71X10953 | Module Shelf Fz |
|
- | |||||
| 31 | WR17X12910 | Grill Recess |
|
- | |||||
| 36 | WR01F01784 | Solenoid Asm (Replaces: WR62X10055) |
|
$ 80.09 | |||||
| 45 | WR2X8818 | Retainer Recess Door |
|
- | |||||
| 58 | WR17X34266 | Housing Shield Disp Black |
|
- | |||||
| 62 | WR01L01914 | Door Recess Asm (Replaces: WR17X11653) |
|
$ 58.69 | |||||
| 63 | WG03A00047 | Spring Recess Door (Replaces: WR02X10585) |
|
Immediately | $ 3.57 | ||||
| 67 | WR01L00935 | Crank Door Recess (Replaces: WR17X10706) |
|
$ 11.44 | |||||
| 69 | WR17X21781 | Dispenser Ice Funnel |
|
- | |||||
| 70 | WR01A00415 | Paddle Asm (Replaces: WR17X12885) |
|
$ 65.03 | |||||
| 72 | WR23X10783 | Switch |
|
- | |||||
| 74 | WR01A00922 | Spring Torsion (Replaces: WR02X12256) |
|
$ 21.44 | |||||
| 80 | WR01F02845 | Union Connector (Replaces: WR02X11330) |
|
Immediately | $ 17.15 | ||||
| 93 | WR55X35086 | Interface Dispenser Asm Black |
|
- | |||||
| 122 | WR01L02896 | Module Shelf Fz (Replaces: WR71X10291) |
|
$ 24.03 | |||||
| 123 | WR71X10501 | Module Shelf Fz Fixed |
|
- | |||||
| 291 | WR01X10616 | Scr 6-10 Pl Flp 1/2 S |
|
- | |||||
| 854 | WR23X34250 | Harness Recess Disp |
|
- | |||||
| 900 | WR78X44434 | Freezer Door - Black |
|
- | |||||
| 903 | WR01X10234 | Thimble Door Btm Fz Black |
|
- | |||||
| 904 | WR01A00637 | Scr 10-16 (Replaces: WR01X10611) |
|
$ 3.57 | |||||
| 911 | WR01X10956 | Thimble Door |
|
- | |||||
| 915 | WR01X20424 | Set Screw (9.5mm) |
|
- |
