Freezer Section


Freezer Shelves


Fresh Food Door


Fresh Food Shelves


Ice Maker & Dispenser


Machine Compartment


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
225	WR01F01884		Tube Drain   (Replaces: WR02X11426)			Immediately	$ 32.88
257	WR02X10663		Stand Off		Appelez-nous	-
270	WG03F00304		Grommet And Tube Asm   (Replaces: WR17X11168)				$ 21.44
312	WG03L06838		Wheel Mobility   (Replaces: WR02X10695)				$ 17.15
315	WR02X11998		Mobility Wheel Kit		Appelez-nous	-
602	WR01X10617		Scr 1/4-14 Ab Ihw 3/4 S		Appelez-nous	-
616	WR01L14249		Access Cover   (Replaces: WR82X10103)				$ 56.53
626	WR23X26686		Harness Cab Lower		Appelez-nous	-
686	WR01A00664		Scr 12-24 Tt Ovt 1.000 S   (Replaces: WR01X10918)				$ 4.20
725	WR87X45508		Compressor Jiaxipera		Appelez-nous	-
730	WR87X41927		Condenser 10 Pass		Appelez-nous	-
736	WR2X8203		Clip		Appelez-nous	-
737	WR02X40305		Grommet		Appelez-nous	-
740	WR87X30875		R600 Drier W/ Red Cap		Appelez-nous	-
741	WR1X1779		Stud Mtg Compr		Appelez-nous	-
750	WR1X1786		Scr 10-32 Tr 1/2		Appelez-nous	-
757	WR01X10622		Scr 10-32 B Ihxw 1/2		Appelez-nous	-
775	WR17X37725		Cover Water Line		Appelez-nous	-
800	WR57X30891		Valve Isolation Asm		Appelez-nous	-
801	WR55X40590		Main Control Board		Appelez-nous	-
803	WR02X40325		Main Control Board Cover		Appelez-nous	-
805	WR1X5278		Cable Clamp		Appelez-nous	-
806	WR01F01881		Tube Plastic   (Replaces: WR17X11625)				$ 14.29
870	WR23X24463		Harness Inverter Comm		Appelez-nous	-
871	WR87X45509		Inverter		Appelez-nous	-
916	WR02X13569		Sound Damper		Appelez-nous	-
917	WR02X13573		Sound Damper		Appelez-nous	-
943	WR01X25308		Scr 10-16 B Hxw 1/4 S		Appelez-nous	-
980	WR60X37835		Condenser Fan Asm Bm		Appelez-nous	-
982	WR02X13774		Tube Lead		Appelez-nous	-

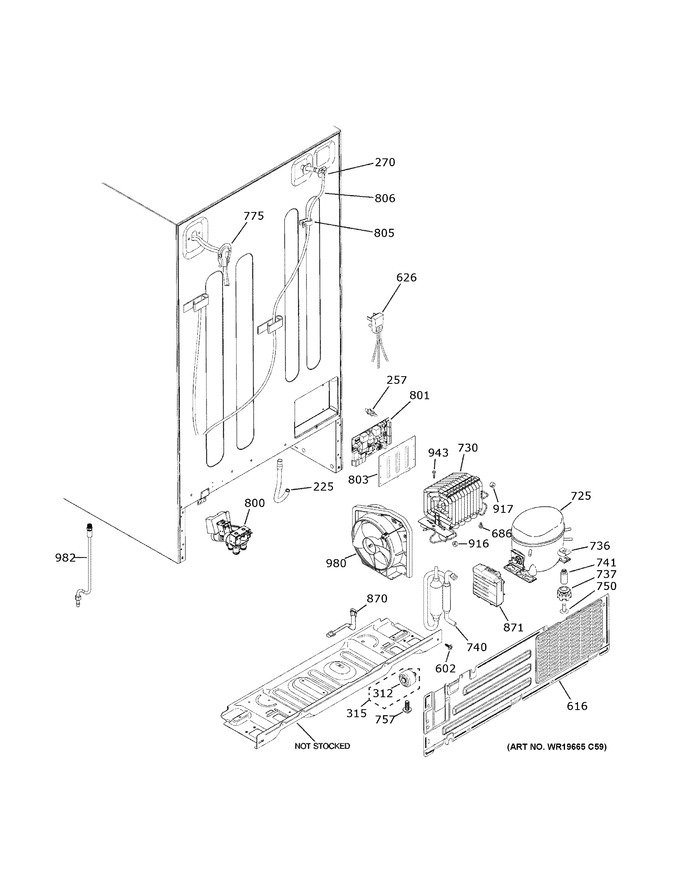

    View Diagram in Separate Window       Print Part List
