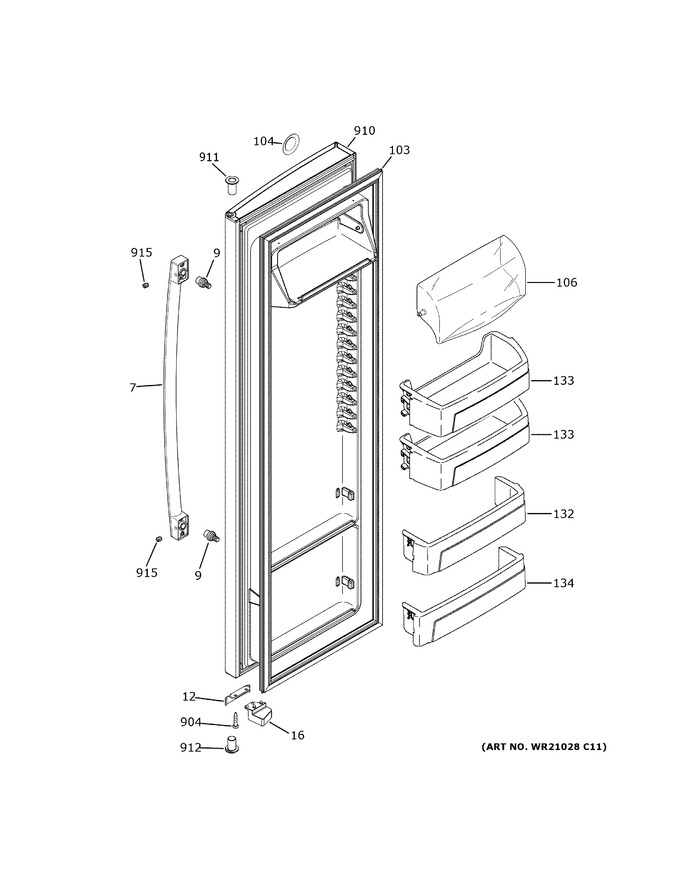

Fresh Food Door
Fresh Food Shelves
Ice Maker & Dispenser
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7 | WR12X34906 | Arc Handle Asm Ss |
|
- | |||||
| 9 | WR01A01801 | Door Handle Fastener (Replaces: WR01X11007) |
|
Immediately | $ 11.44 | ||||
| 12 | WR01A01018 | Stop Door Black (Replaces: WR02X10782) |
|
$ 35.73 | |||||
| 16 | WR01F01557 | Cam Closure Ff Black (Replaces: WR02X10779) |
|
$ 32.88 | |||||
| 103 | WR24X20456 | Gasket Door Ff Dg |
|
- | |||||
| 104 | WR04X29994 | Ge Badge |
|
- | |||||
| 106 | WR71X38317 | Door Dairy |
|
- | |||||
| 132 | WR71X24430 | Shelf Fixed Ff |
|
- | |||||
| 133 | WR71X38318 | Shelf Module Ff |
|
- | |||||
| 134 | WR71X24429 | Shelf Fixed Ff |
|
- | |||||
| 904 | WR01X10582 | Scr 10-16 |
|
- | |||||
| 910 | WR78X22985 | Door Foam Asm Ff |
|
- | |||||
| 911 | WR01X10956 | Thimble Door |
|
- | |||||
| 912 | WR01X10953 | Thimble Door |
|
- | |||||
| 915 | WR01X20424 | Set Screw (9.5mm) |
|
- |
