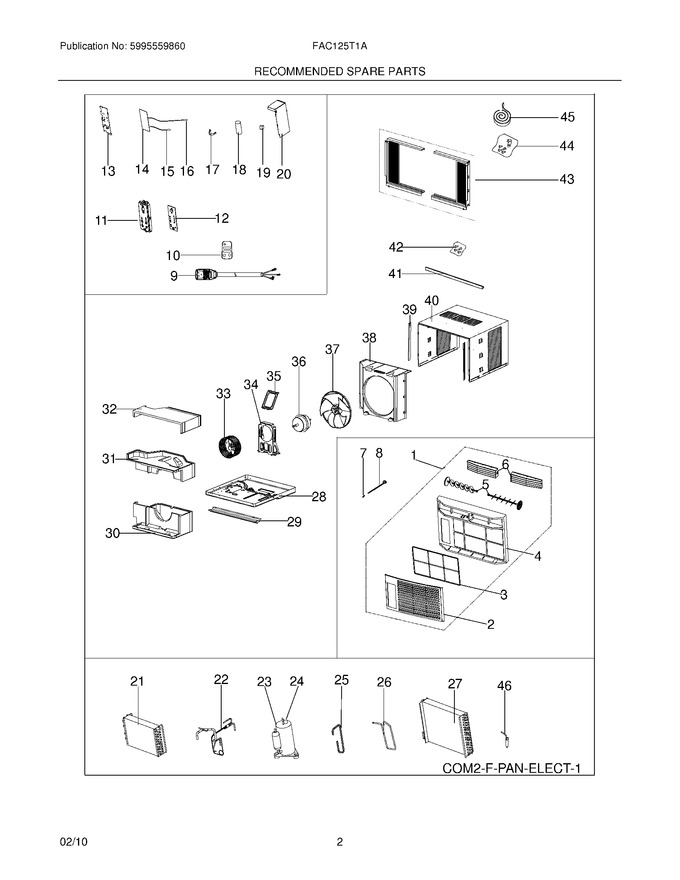

03 - Recommended Spare Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 5304476877 | Panel,front Grille ,tilt-out |
|
- | |||||
| 4 | 5304476878 | Frame,front Assembly |
|
- | |||||
| 5 | 5304476761 | Louver,vertical |
|
- | |||||
| 6 | 5304476762 | Louver,horizontal |
|
- | |||||
| 7 | 5304476832 | Door,fresh Air Vent |
|
- | |||||
| 11 | 5304476879 | Control Panel,with Overlay |
|
- | |||||
| 13 | 5304476881 | Cover,electric Box |
|
- | |||||
| 17 | 5304471203 | Strap,capacitor Clamp |
|
- | |||||
| 20 | 5304476225 | Control Box |
|
- | |||||
| 28 | 5304476839 | Base,unit Chassis |
|
- | |||||
| 29 | 5304476775 | Rail,shutter Track ,bottom |
|
- | |||||
| 30 | 5304476191 | Scroll,blower Housing ,bottom |
|
- | |||||
| 31 | 5304476192 | Scroll,blower Housing ,middle |
|
- | |||||
| 32 | 5304476193 | Scroll,blower Housing ,top |
|
- | |||||
| 34 | 5304476194 | Support,motor Mount ,left |
|
- | |||||
| 35 | 5304476195 | Support,motor Mount ,right |
|
- | |||||
| 38 | 5304476196 | Shroud,condenser/fan |
|
- | |||||
| 39 | 5304472209 | Retainer,shutter ,cabinet Sides |
|
$ 11.48 | |||||
| 40 | 5304476840 | Cabinet,wrapper/sleeve |
|
- | |||||
| 41 | 5304472210 | Rail,shutter Track ,top |
|
- | |||||
| 42 | 5304472191 | Screw Kit,top Rail Mount |
|
$ 16.22 | |||||
| 43 | 5304472208 | Window Filler Kit,slider Panels |
|
- | |||||
| 44 | 5304472192 | Hardware,mounting ,screws/locks |
|
$ 8.49 | |||||
| 45 | 5304472211 | Seal Kit,foam ,sash Filler |
|
$ 36.12 | |||||
| F1 | 5304472206 | Front Assembly,complete Panel |
|
- | |||||
| F10 | 5304471273 | Remote Control,transmitter |
|
- | |||||
| F12 | 5304476880 | Pc Board,display/input |
|
- | |||||
| F14 | 5304476882 | Pc Board,main ,control/power |
|
- | |||||
| F15 | 5304521225 | Thermistor,evap Sensor ,defrost (Replaces: 5304471275) |
|
- | |||||
| F16 | 5304476053 | Thermistor,temp Sensor ,indoor |
|
$ 28.93 | |||||
| F18 | 5304471300 | Capacitor |
|
- | |||||
| F19 | 5304472559 | Ionizer,anion Generator |
|
- | |||||
| F21 | 5304476230 | Evaporator,with Cap Tube |
|
$ 323.00 | |||||
| F22 | 5304476868 | Tube,capillary |
|
- | |||||
| F23 | 5304475760 | Compressor,with Overload |
|
- | |||||
| F24 | 5304476885 | Overload Protector,compressor |
|
- | |||||
| F25 | 5304476236 | Tube,suction |
|
- | |||||
| F26 | 5304476237 | Tube,discharge |
|
- | |||||
| F27 | 5304476233 | Condenser |
|
$ 441.00 | |||||
| F3 | 5304472207 | Filter,air |
|
$ 16.33 | |||||
| F33 | 5304476058 | Blower Wheel,centrifugal |
|
$ 70.98 | |||||
| F36 | 5304476057 | Motor,fan |
|
$ 299.20 | |||||
| F37 | 5304504802 | Fan Blade,axial (Replaces: 5304476059) |
|
- | |||||
| F46 | 5304476201 | Drier-filter |
|
$ 38.98 | |||||
| F8 | 5304520877 | Sleeve,vent Door Assy ,guide (Replaces: 5304476179) |
|
- | |||||
| F9 | 5304476768 | Power Cord,lcdi ,test/reset |
|
$ 177.82 |
