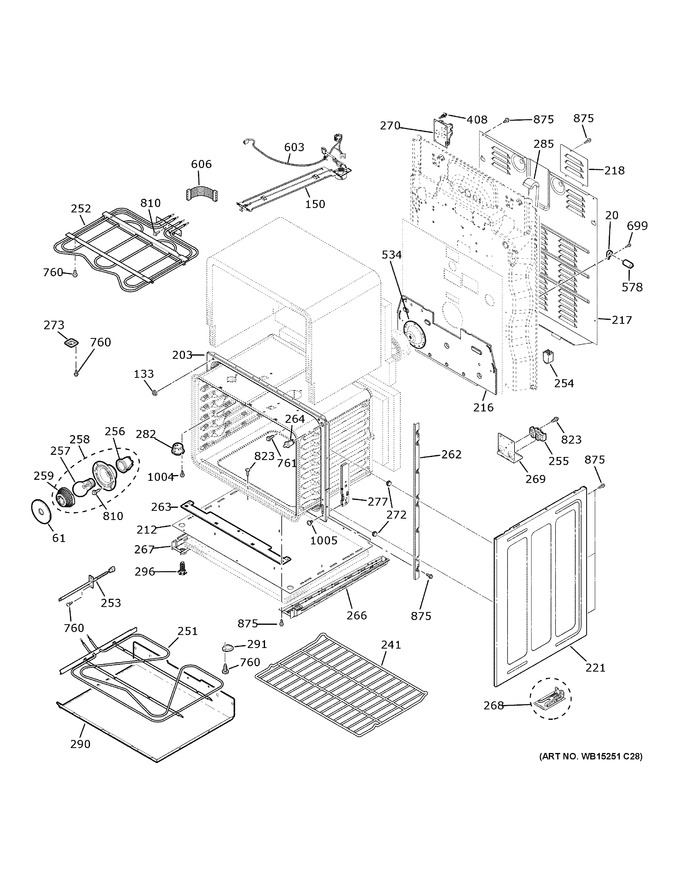

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 20 | WB02T10533 | Bracket Capacitior |
|
- | |||||
| 61 | WB04T10021 | Gasket Oven Light |
|
- | |||||
| 133 | WG02F03972 | Door Bumper (Replaces: WB01T10022) |
|
$ 5.72 | |||||
| 150 | WB10X25238 | Latch Asm |
|
- | |||||
| 203 | WB63X20864 | Frame Front Lwr (bk) |
|
- | |||||
| 212 | WB63X25990 | Base Dual Cavity |
|
- | |||||
| 216 | WB02X20855 | Shield Heat Back |
|
- | |||||
| 217 | WB02T10575 | Cover Wire Main |
|
- | |||||
| 218 | WB02T10564 | Cover Terminal Block |
|
- | |||||
| 221 | WB63X28679 | Side Panel Dg |
|
- | |||||
| 241 | WB48T10076 | Rack Oven |
|
- | |||||
| 251 | WB44X45486 | Hidden Bake Element |
|
- | |||||
| 252 | WB44X45490 | Broil Shield |
|
- | |||||
| 253 | WS01F02431 | Sensor Asm (Replaces: WB21X22134) |
|
Immediately | $ 27.18 | ||||
| 254 | WS01F02351 | Relay (Replaces: WB18T10352) |
|
Immediately | $ 172.14 | ||||
| 255 | WB17X38438 | Block Terminal Asm |
|
- | |||||
| 256 | WS01F02438 | Receptacle Push-in (Replaces: WB08T10026) |
|
Immediately | $ 10.54 | ||||
| 257 | 40A15 | 40watt 15amp |
|
Immediately | $ 1.98 | ||||
| 258 | WG02F01227 | Oven Lamp Holder Asm (Replaces: WB08T10002) |
|
$ 57.24 | |||||
| 259 | WG02F05612 | Oven Bulb Lens (Replaces: WB25T10002) |
|
Immediately | $ 25.73 | ||||
| 262 | WB07T10621 | Trim Vertical Sides |
|
- | |||||
| 263 | WB34X42993 | Cover Front |
|
- | |||||
| 264 | WG02F04509 | Switch Spdt High Amp (Replaces: WB24T10147) |
|
$ 27.16 | |||||
| 266 | WB02T10353 | Base Rail |
|
- | |||||
| 267 | WB02T10352 | Base Rail |
|
- | |||||
| 268 | WB02T10578 | Anti-tip Bracket Asm |
|
- | |||||
| 269 | WB02T10542 | Bracket Strain Relief |
|
- | |||||
| 270 | WB27X29201 | Relay Daughter Board |
|
- | |||||
| 272 | WG02L01603 | Side Panel Support (Replaces: WB02T10034) |
|
$ 4.20 | |||||
| 273 | WB2K5365 | Cover |
|
- | |||||
| 277 | WB10X30495 | Hinge Receiver |
|
- | |||||
| 282 | WB38X33648 | Vent Tube |
|
- | |||||
| 285 | WB34X25232 | Tube Vnt Asm Lwr |
|
- | |||||
| 290 | WB49T10071 | Pan Reflector |
|
- | |||||
| 291 | WB02T10487 | Cover Hole |
|
- | |||||
| 296 | WG02A00475 | Leg Leveler (Replaces: WB02X10521) |
|
Immediately | $ 5.72 | ||||
| 408 | WB02T10477 | Pcb Standoff |
|
- | |||||
| 534 | WB02X20947 | Support Ovn Cav (bk) |
|
- | |||||
| 578 | WG02F00227 | Capacitor Motor (Replaces: WB27T10662) |
|
$ 25.73 | |||||
| 603 | WB18X32732 | Plunger Switch Harness |
|
- | |||||
| 603 | WB18X46480 | Plunger Switch Harness |
|
- | |||||
| 606 | WB18X32735 | Hidden Bake Harness Wire |
|
- | |||||
| 699 | WB1K5150 | Screw St10-16 X 7/16" |
|
- | |||||
| 760 | WB1K5028 | Screw |
|
- | |||||
| 761 | WB01T10084 | Scr 8 - 32 X .343 Trs S |
|
- | |||||
| 810 | WB01M10002 | Screw |
|
- | |||||
| 823 | WS01A00445 | Screw Ground (Replaces: WB1X1261) |
|
$ 12.51 | |||||
| 875 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 1004 | WH2X941 | Scr 8-15 A Hxw 7/8 S |
|
- | |||||
| 1005 | WB01X27933 | Scr 10-32 Ca Trt20 3.30 |
|
- |
