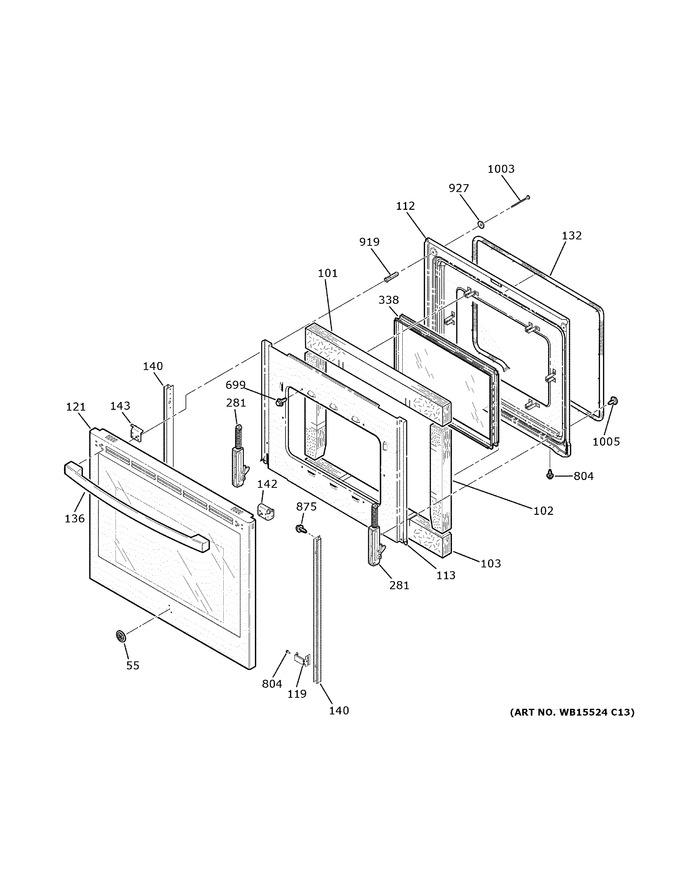

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
55	WB02X29479		Flat Badge Asm		Appelez-nous	-
101	WB35T10134		Insulation Door		Appelez-nous	-
102	WB35T10135		Insulation Door		Appelez-nous	-
103	WB35T10255		Insulation Door		Appelez-nous	-
112	WB55T10203		Liner Oven Door Asm (bk)		Appelez-nous	-
113	WB56T10178		Retainer Ovn Dr Insln		Appelez-nous	-
119	WB02X28578		Door Glass Bracket		Appelez-nous	-
121	WB56X38669		White Outer Door		Appelez-nous	-
132	WB35X30048		Oven Door Gasket		Appelez-nous	-
136	WB15X35055		Handle & Endcap Asm (wh)		Appelez-nous	-
140	WB56T10290		Frame Door Side (wh)		Appelez-nous	-
142	WB34X25221		Bracket Ovn Hdl Vnt Trm (rh)		Appelez-nous	-
143	WB34X25220		Bracket Ovn Hdl Vnt Trm (lh)		Appelez-nous	-
281	WB10T10070		Hinge Door		Appelez-nous	-
338	WB56X22160		Window Pack Asm		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
804	WB01T10046		Wz4x245d		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
919	WB02X38986		Spacer		Appelez-nous	-
927	WB1X119		Contoured Washer		Appelez-nous	-
1003	WB02X24268		Scr 10-32 Ca Trt15 3.06		Appelez-nous	-
1005	WS01A01018		Screw 10-32 Tr T   (Replaces: WB01T10008)			Immediately	$ 3.57
