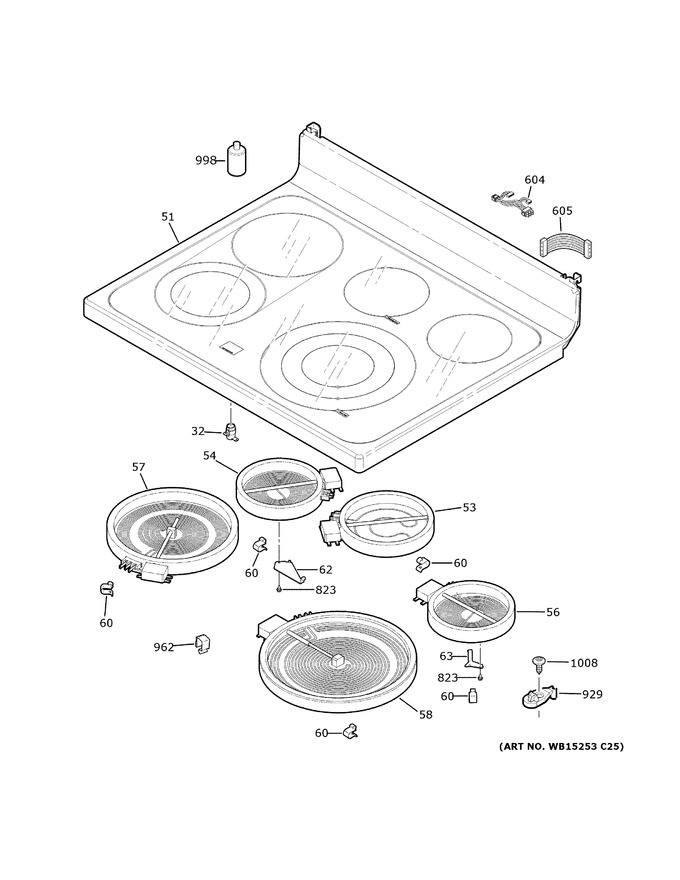

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 32 | WG02F04788 | Hot Cooktop Light Indicator (Replaces: WB27T10668) |
|
Immediately | $ 14.29 | ||||
| 51 | WB62X37711 | Rangetop Glass Asm (gy) |
|
- | |||||
| 53 | WB30X42872 | Warming Element 80w |
|
- | |||||
| 54 | WG02F04090 | Element Radiant 8 In (Replaces: WB30T10132) |
|
Immediately | $ 115.25 | ||||
| 56 | WG02F02056 | Element Radiant 5.5 In (Replaces: WB30T10145) |
|
Immediately | $ 133.34 | ||||
| 57 | WS01F01178 | Element Haliant (dual) (Replaces: WB30T10135) |
|
Immediately | $ 116.61 | ||||
| 58 | WG02F07429 | Element Haliant 12 Trpl (Replaces: WB30T10155) |
|
Immediately | $ 194.99 | ||||
| 60 | WB09X40389 | Spring Radiant Element |
|
- | |||||
| 62 | WB02T10574 | Bracket Radiant Element |
|
- | |||||
| 63 | WB02X20902 | Bracket Radiant Element |
|
- | |||||
| 604 | WB18X30717 | Lead Wire 14 Ga Gn |
|
- | |||||
| 605 | WB18X42869 | Maintop Harness |
|
- | |||||
| 823 | WB01T10072 | Scr 10-16 Ab Ihw .625 Ni |
|
- | |||||
| 929 | WB02T10026 | Maintop Strike |
|
- | |||||
| 962 | WB02X25982 | Clip Cable |
|
- | |||||
| 998 | WB64X38025 | Cleaner Glass |
|
- | |||||
| 1008 | WB1X5904 | Scr 8-18 Ba Por 3/4 Sn |
|
- |
