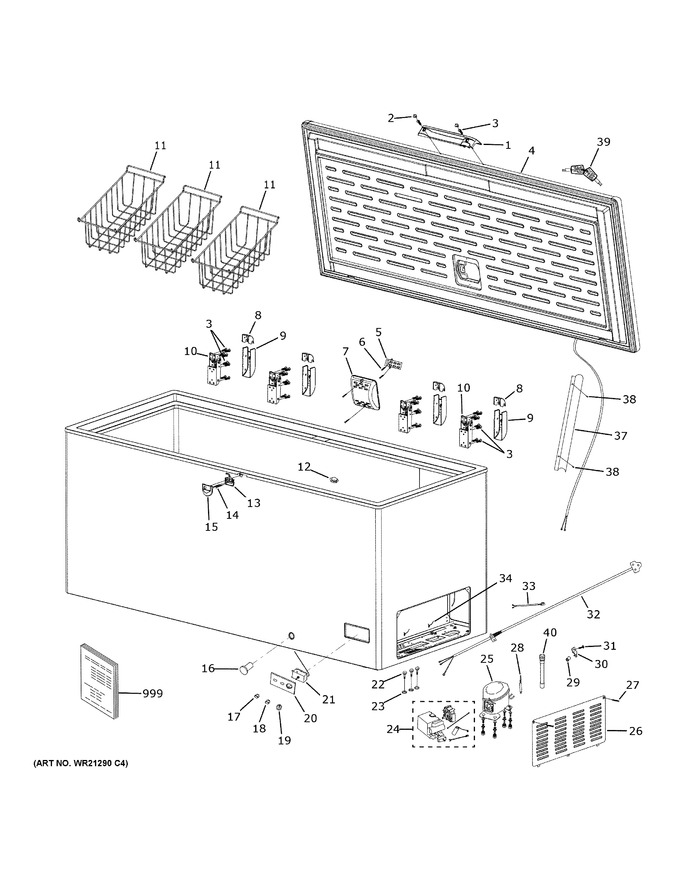

Freezer
Lokring Connectors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR12X28041 | Freezer Door - Handle White |
|
- | |||||
| 2 | WR01X28054 | Cover Screw White |
|
- | |||||
| 3 | WR01X46592 | Screw |
|
- | |||||
| 4 | WR78X46168 | White Door & Gasket |
|
- | |||||
| 5 | WR55X30078 | Led Light |
|
- | |||||
| 6 | WR01X28030 | Screw St3.5 X 13 |
|
- | |||||
| 7 | WR13X28032 | Led Light Cover |
|
- | |||||
| 8 | WR13X28037 | Hinge Cover Top White |
|
- | |||||
| 9 | WR13X28039 | Hinge Cover Bottom White |
|
- | |||||
| 10 | WR13X46325 | Hinge Freezer Door 18" |
|
- | |||||
| 11 | WR71X46055 | Basket |
|
- | |||||
| 12 | WR01X43467 | Drain Plug |
|
- | |||||
| 13 | WR01X28052 | Door Lock |
|
- | |||||
| 14 | WR01X20672 | Screw |
|
- | |||||
| 15 | WR13X28055 | Cover Door Lock |
|
- | |||||
| 16 | WR01X36306 | Drain Plug Exterior |
|
- | |||||
| 17 | WR01X41889 | Power Indicator Light - Green |
|
- | |||||
| 18 | WR01X46050 | Red Light |
|
- | |||||
| 19 | WR01X46052 | Thermostat Knob |
|
- | |||||
| 20 | WR13X46048 | Control Panel Cover - White |
|
- | |||||
| 21 | WR09X46049 | Thermostat |
|
- | |||||
| 22 | WR01X27844 | Grounding Screw M4 X 8 |
|
- | |||||
| 23 | WR01X27831 | Washer |
|
- | |||||
| 24 | WR87X46057 | Compressor Electricals |
|
- | |||||
| 25 | WR87X46056 | Compressor |
|
- | |||||
| 26 | WR14X36085 | Access Cover |
|
- | |||||
| 27 | WR01X27843 | Screw St3.5 X 13 |
|
- | |||||
| 28 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 29 | WR02X12194 | Grommet Rubber |
|
- | |||||
| 30 | WR01X27816 | Clamp Power Cord |
|
- | |||||
| 31 | WR01X27825 | Screw St4.2 X 13 |
|
- | |||||
| 32 | WR55X32189 | Power Cord |
|
- | |||||
| 33 | WR55X46053 | Wire Harness |
|
- | |||||
| 34 | WR01X10745 | Wire Tie |
|
- | |||||
| 37 | WR13X28040 | Harness Door Cover |
|
- | |||||
| 38 | WR01X27789 | Screw St3.5 X 9.5 |
|
- | |||||
| 39 | WR01X28053 | Door Key |
|
$ 12.25 | |||||
| 40 | WR87X30876 | R600 Process Valve W/ Red Cap |
|
- | |||||
| 999 | 49-1000746 | Pm Owners Manual |
|
- | |||||
| 999 | 31-1000747 | Printed Only Mini Manual And Wiring |
|
- |
