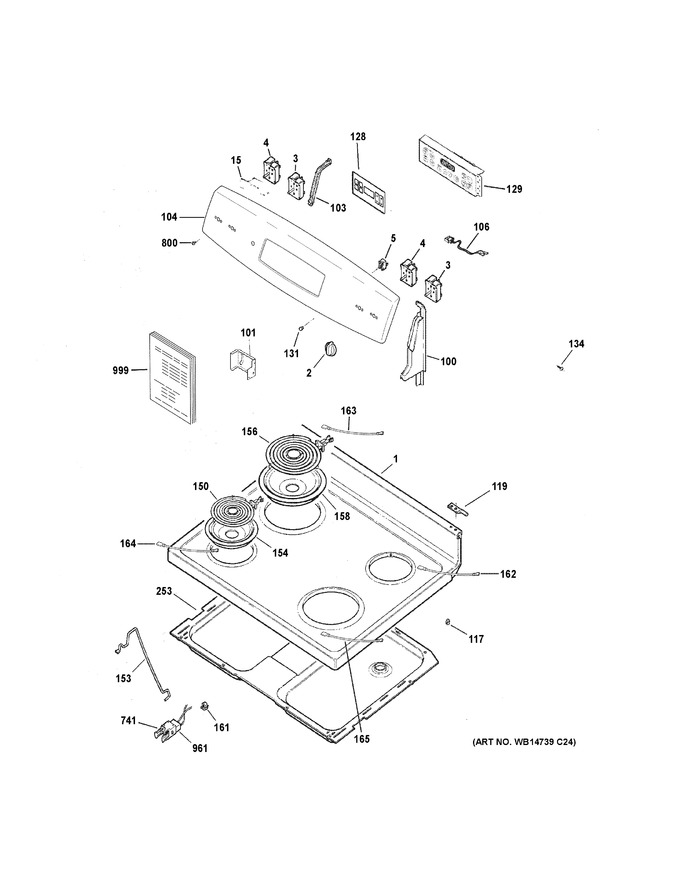

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WS01L01431 | Range Top (Replaces: WB62K10080) |
|
$ 119.75 | |||||
| 2 | WS01L11538 | Knob Valve (Replaces: WB03X21352) |
|
$ 7.15 | |||||
| 3 | WG02F04192 | Inf Sw Control (2500w) (Replaces: WB24T10025) |
|
Immediately | $ 65.23 | ||||
| 4 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 5 | WS01F01697 | Lamp Pilot (Replaces: WB25K10002) |
|
Immediately | $ 7.15 | ||||
| 15 | WB2K6 | Cover Thermostat |
|
- | |||||
| 100 | WB07X20277 | End Support Right (white) |
|
- | |||||
| 100 | WB07X20278 | End Support Left (white) |
|
- | |||||
| 101 | WB37X20196 | Bracket Cook Top Right |
|
- | |||||
| 101 | WB37X20193 | Bracket Cook Top Left |
|
- | |||||
| 103 | WB02K10150 | Bracket Control |
|
- | |||||
| 104 | WB36X21597 | Trim Control |
|
- | |||||
| 106 | WB18X31422 | Harness Control |
|
- | |||||
| 117 | WB2K17 | Pin Locator Front |
|
- | |||||
| 117 | WS01A00636 | Pin Locator Rear (Replaces: WB02K10075) |
|
$ 4.20 | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 128 | WB07X24623 | Overlay T09 |
|
- | |||||
| 129 | WB27X29091 | Oven Control To9 White Led |
|
- | |||||
| 131 | WB25K2 | Lens |
|
- | |||||
| 134 | WB1X5874 | Screw Wh |
|
- | |||||
| 150 | WB31X46067 | 6" Inch Surface Burner With Sensor |
|
- | |||||
| 153 | WS01A00511 | Rod Support (Replaces: WB02K10026) |
|
$ 3.57 | |||||
| 154 | WS01L09257 | Bowl Burner 6 (ch) (Replaces: WB31K10265) |
|
Immediately | $ 14.86 | ||||
| 156 | WB31X46066 | 8" Inch Surface Burner With Sensor |
|
- | |||||
| 158 | WS01L09258 | Bowl Burner 8 (ch) (Replaces: WB31K10266) |
|
Immediately | $ 19.54 | ||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 162 | WB18X27485 | Harness Surface Unit Rr |
|
- | |||||
| 163 | WB18X27486 | Harness Surface Unit Lr |
|
- | |||||
| 164 | WB18X27487 | Harness Surface Unit Lf |
|
- | |||||
| 165 | WB18X27488 | Harness Surface Unit Rf |
|
- | |||||
| 253 | WB64K10009 | Box Cooktop |
|
- | |||||
| 741 | WS01A00907 | Clip Receptical (Replaces: WB02K10133) |
|
Immediately | $ 4.48 | ||||
| 800 | WB1K8 | Screw Thermostat |
|
- | |||||
| 961 | PM2M2261 | Block Insulator (Replaces: WB17K10003) |
|
Immediately | $ 28.29 | ||||
| 999 | 49-2001027 | Pm Owners Manual |
|
- | |||||
| 999 | 49-2001036 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 49-2000686 | Pm Insert Instructions |
|
- | |||||
| 999 | 31-2000873 | Pm Mini Manual And Wiring |
|
- |
