Body Parts
Control Panel & Cooktop
Door & Drawer Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

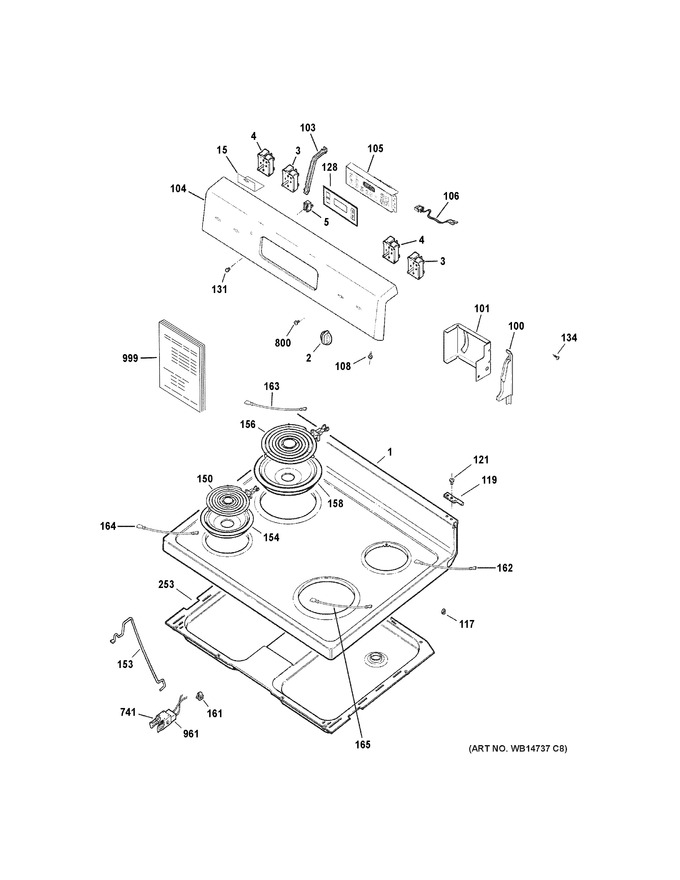

| 1 | WB62X21354 | Range Top |
|
- | |||||
| 2 | WB03K10301 | Knob |
|
- | |||||
| 3 | WG02F04192 | Inf Sw Control (2500w) (Replaces: WB24T10025) |
|
Immediately | $ 65.23 | ||||
| 4 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 5 | WS01F01697 | Lamp Pilot (Replaces: WB25K10002) |
|
Immediately | $ 7.15 | ||||
| 15 | WB02X33816 | Cover Thermostat |
|
- | |||||
| 100 | WB07K10194 | End Support Gloss Black Lf |
|
- | |||||
| 100 | WB07K10193 | End Support Gloss Black Rt |
|
- | |||||
| 101 | WB37X20193 | Bracket Cook Top Left |
|
- | |||||
| 101 | WB37X20196 | Bracket Cook Top Right |
|
- | |||||
| 103 | WB02K10076 | Bracket Control |
|
- | |||||
| 104 | WB36X22802 | Trim Control |
|
- | |||||
| 105 | WG02F16063 | Control Oven To9 (elec) (Replaces: WB27K10344) |
|
Immediately | $ 213.63 | ||||
| 106 | WB18X31489 | Control Harness |
|
- | |||||
| 108 | WB1X593 | Screw - Door Asm (4 Per) |
|
- | |||||
| 117 | WS01A00636 | Pin Locator Rear (Replaces: WB02K10075) |
|
$ 4.20 | |||||
| 117 | WB2K17 | Pin Locator Front |
|
- | |||||
| 119 | WB14K5 | Pin Hinge |
|
- | |||||
| 121 | WB1K1 | Screw |
|
- | |||||
| 128 | WB07X31451 | Black Overlay T09 |
|
- | |||||
| 131 | WB25K2 | Lens |
|
- | |||||
| 134 | WS01A01408 | Screw (blk) (Replaces: WB1X5716) |
|
$ 4.20 | |||||
| 150 | WB31X46067 | 6" Inch Surface Burner With Sensor |
|
- | |||||
| 153 | WS01A00511 | Rod Support (Replaces: WB02K10026) |
|
$ 3.57 | |||||
| 154 | WB31T10014 | 6 Inch Black Porcelain Burner Bowl-elec |
|
- | |||||
| 156 | WB31X46066 | 8" Inch Surface Burner With Sensor |
|
- | |||||
| 158 | WG02L01430 | 8 Inch Black Porcelain Burner Bowl-elec (Replaces: WB31T10015) |
|
Immediately | $ 24.33 | ||||
| 161 | WS01A01095 | Clip Wire (Replaces: WB2X8115) |
|
Immediately | $ 3.57 | ||||
| 162 | WB18X27485 | Harness Surface Unit Rr |
|
- | |||||
| 163 | WB18X27486 | Harness Surface Unit Lr |
|
- | |||||
| 164 | WB18X27487 | Harness Surface Unit Lf |
|
- | |||||
| 165 | WB18X27488 | Harness Surface Unit Rf |
|
- | |||||
| 253 | WB64K10009 | Box Cooktop |
|
- | |||||
| 741 | WS01A00907 | Clip Receptical (Replaces: WB02K10133) |
|
Immediately | $ 4.48 | ||||
| 800 | WS01A01257 | Screw 8-32 Tpt Flr 215 Sn (Replaces: WB01T10020) |
|
$ 3.57 | |||||
| 961 | PM2M2261 | Block Insulator (Replaces: WB17K10003) |
|
Immediately | $ 28.29 | ||||
| 999 | 31-10892 | Pm Install Instructions |
|
- | |||||
| 999 | 49-2001036 | Pm Quick Owners Manual |
|
- | |||||
| 999 | 31-2000873 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 49-2001027 | Pm Owners Manual |
|
- | |||||
| 999 | WB49X21392 | Hinge Service Kit |
|
- |
