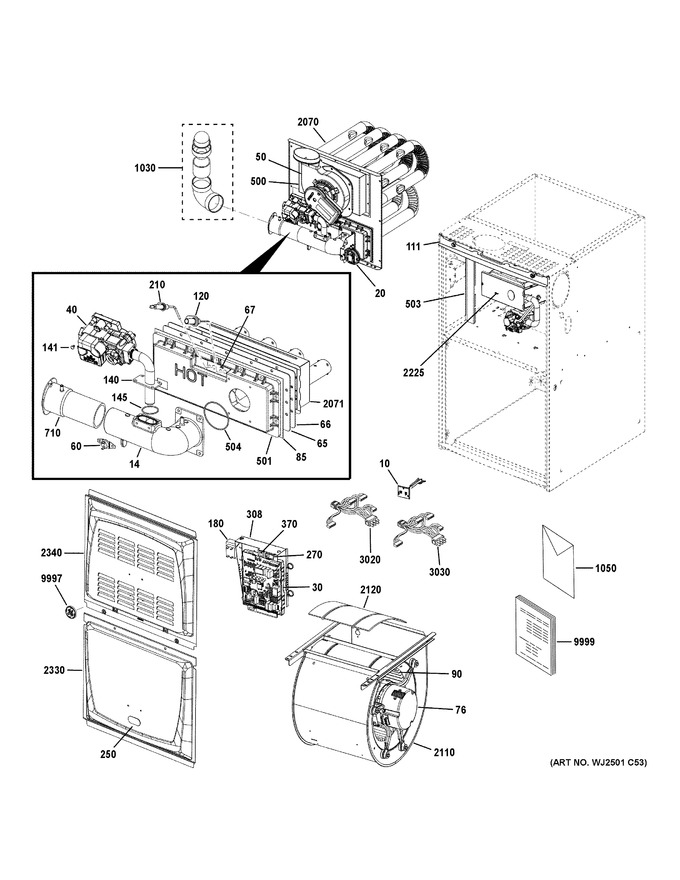

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | 73W19 | 102857-06 Control-limit (155f) |
|
Immediately | $ 65.75 | ||||
| 14 | 15P55 | Elbow - Gas/air-(cto) |
|
- | |||||
| 20 | 22V51 | 107170-02 Swtch-press Sng Stg Uln .20"wc |
|
- | |||||
| 30 | 15T95 | Kit-ign Cntrl (103131-06)-(cto) |
|
- | |||||
| 40 | 15V44 | 105077-01 Gas Valve, Sit 1:1 Neg Reg |
|
- | |||||
| 50 | 23A34 | 615543-09 Cai Comb-mtr Kit Ecm 2-stg |
|
- | |||||
| 60 | 66J78 | Rollout Limit-(cto) |
|
- | |||||
| 65 | 15V84 | Gkt-graphite Brnr/cc, 100-(cto) |
|
- | |||||
| 66 | 15V87 | Gkt-graphite Brnr/plen, 100-(cto) |
|
- | |||||
| 67 | 16A58 | 105165-01, Gasket-graphite, Igniter/sens |
|
- | |||||
| 76 | 10U27 | Motor Control Kit Var Spd-(cto) |
|
- | |||||
| 85 | 15V95 | Gkt-brnr Box/vest Pnl, 100-(cto) |
|
- | |||||
| 90 | 36M22 | Wheel-blower-(cto) |
|
- | |||||
| 111 | 74W15 | Panel Filler Door Trim-(cto) |
|
- | |||||
| 120 | 15K17 | 617498-01 Ignitor Assy |
|
- | |||||
| 140 | 24L16 | 105020-15 Manifold Uln Nozzle Assy |
|
- | |||||
| 141 | 23A32 | 616086-29 Air Orifice 1.160 |
|
- | |||||
| 145 | 15V45 | O-ring,manifold/elbow-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 210 | 15K16 | Flame Sensor - Uln-(cto) |
|
- | |||||
| 250 | 27M47 | Sightglass Repl Kit-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 308 | 28W59 | Box-control-(cto) |
|
- | |||||
| 370 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 500 | 24L28 | 107227-03 Gasket Collector Box - Uln |
|
- | |||||
| 501 | 15P54 | Plenum - Gas/air-(cto) |
|
- | |||||
| 503 | 24L07 | 623111-03 Box - Collector Uln Cast (100) |
|
- | |||||
| 504 | 15K20 | O-ring, Elbow/plenum-(cto) |
|
- | |||||
| 710 | 34W48 | 101461-01 Elbow - 2" 90 Street Ell |
|
- | |||||
| 1030 | 22B33 | 105157-02 Coup Air-intake Uln-90 Long |
|
- | |||||
| 1050 | 537870-02 | Wire Diagram Sticker-a80us2vx-(cto) |
|
- | |||||
| 2070 | 24L35 | 625024-04 Heat Exch Uln 80% 2s 100c |
|
- | |||||
| 2071 | 15P73 | Assy - Heat Shield-(cto) |
|
- | |||||
| 2110 | 24K44 | Blower Hsg 10 X 10 Uh 625023-03 (cto) |
|
- | |||||
| 2120 | 81L92 | Plate-cutoff-(cto) |
|
- | |||||
| 2225 | 15P43 | Burner - Premix-(cto) |
|
- | |||||
| 2330 | 73W63 | Panel-lower-(cto) |
|
- | |||||
| 2340 | 73W62 | Panel-upper-(cto) |
|
- | |||||
| 3020 | 15T91 | Harness Motor 3.0 Ecm-(cto) |
|
$ 59.99 | |||||
| 3030 | 15K19 | 105049-01 Harness, 2svs |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
