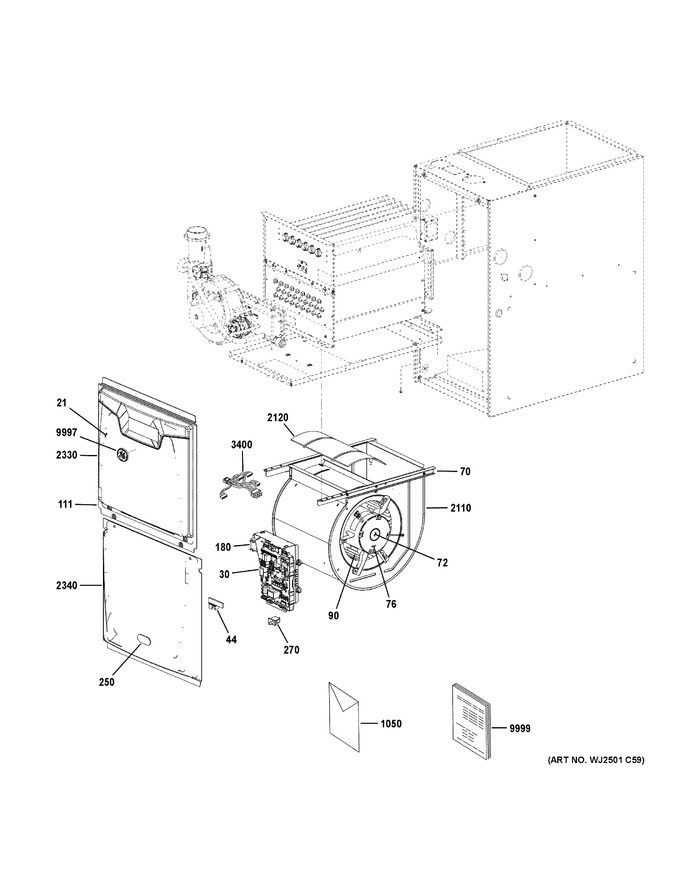

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 21 | R00419B164 | Armstrong Text Slate Gray (doors)-(cto) |
|
- | |||||
| 30 | 24Z39 | 607308-26 Kit-ignition Control |
|
- | |||||
| 44 | 26W34 | Breaker Circuit-(cto) |
|
- | |||||
| 70 | 32M17 | Mount-motor-(cto) |
|
- | |||||
| 72 | 73W02 | 606007-02 3.0 Ecm 3/4 Hp Motor Only |
|
- | |||||
| 76 | 84W86 | 3.0 Ecm Hp Module Only-(cto) |
|
- | |||||
| 90 | 69W50 | Wheel-blower 11 X 11 X 1/2-(cto) |
|
- | |||||
| 111 | 74W15 | Panel Filler Door Trim-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 250 | 49L04 | Sight Glass-(cto) |
|
- | |||||
| 270 | 51W15 | Switch-interlock-(cto) |
|
Immediately | $ 33.78 | ||||
| 1050 | 537492-01 | Wiring Diagram Label-(cto) |
|
- | |||||
| 2110 | 70W42 | Housing-blower-(cto) |
|
- | |||||
| 2120 | 69W08 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 623818-01U | Top Door C-width 90% Uf Blwr-(cto) |
|
- | |||||
| 2340 | 623653-04U | Btm Door C-width 90% Uf Vest-(cto) |
|
- | |||||
| 3400 | 15T91 | Harness Motor 3.0 Ecm-(cto) |
|
$ 59.99 | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Service Instructions |
|
- |
