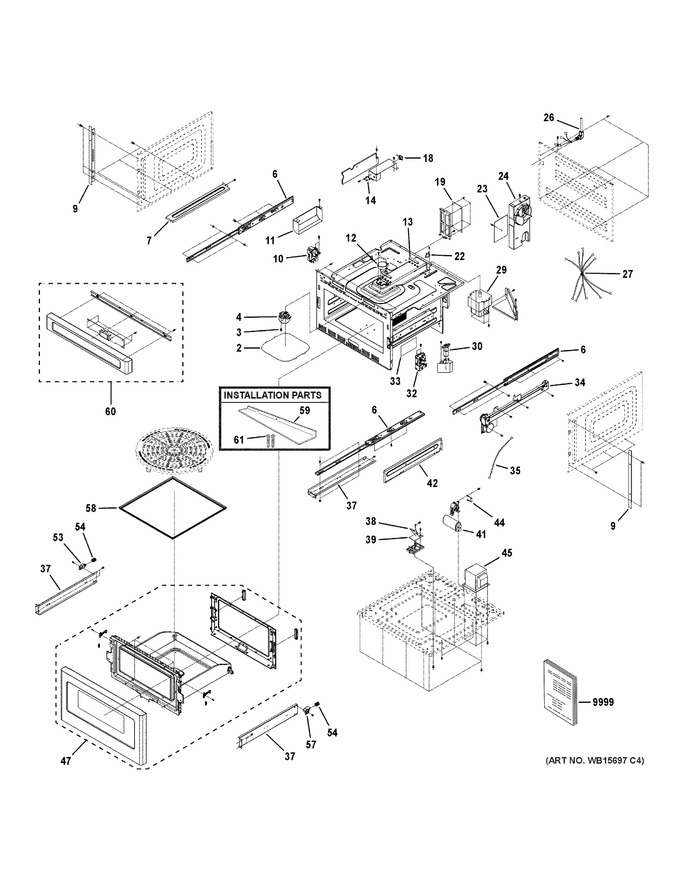

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Microwave
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | WB27X42907 | Splash Cover |
|
- | |||||
| 3 | WB27X42906 | Plastic Nail |
|
- | |||||
| 4 | WB27X42508 | Ass'y Stirrer |
|
- | |||||
| 6 | WB27X42509 | Slider |
|
- | |||||
| 7 | WB27X42510 | Metal Damper *left |
|
- | |||||
| 9 | WB27X42511 | Mounting Plate |
|
- | |||||
| 10 | WB27X42512 | Ass'y Interlock *left |
|
- | |||||
| 11 | WB27X42513 | Metal Wind Guide Cover*lower |
|
- | |||||
| 12 | WB27X42514 | Turntable Motor |
|
- | |||||
| 13 | WB27X42515 | Wave Guide Cover |
|
- | |||||
| 14 | WB27X42526 | Thermostat |
|
- | |||||
| 18 | WB24X28947 | Humidity Sensor |
|
- | |||||
| 19 | WB27X42527 | Power Circuit Board |
|
- | |||||
| 22 | WB27X42526 | Thermostat |
|
- | |||||
| 23 | WB27X42538 | Power Circuit Board |
|
- | |||||
| 24 | WB27X42535 | Ass'y Fan |
|
- | |||||
| 26 | WB27X42536 | Power Cord |
|
- | |||||
| 27 | WB27X42533 | Main Wire Harness |
|
- | |||||
| 29 | WB27X42537 | Magnetron |
|
- | |||||
| 30 | WB27X42531 | Bulb |
|
- | |||||
| 32 | WB27X42586 | Ass'y Interlock *right |
|
- | |||||
| 33 | WB27X42532 | Lamp Cover |
|
- | |||||
| 34 | WB27X42528 | Dc Motor Ass'y |
|
- | |||||
| 35 | WB27X42529 | Main Wire Harness |
|
- | |||||
| 37 | WB27X42539 | Slider Supporter Plate |
|
- | |||||
| 38 | WB27X42530 | Fuse |
|
- | |||||
| 39 | WB27X42540 | Noise Filter |
|
- | |||||
| 41 | WB26X28934 | H.v.capacitor |
|
$ 63.40 | |||||
| 42 | WB27X42542 | Metal Damper *right |
|
- | |||||
| 44 | WB27X25616 | H.v.diode |
|
- | |||||
| 45 | WB27X42544 | H.v.transformer |
|
- | |||||
| 47 | WB27X48817 | Door Asm (ass'y Door) |
|
- | |||||
| 53 | WB27X42545 | Fixing Brkt *left |
|
- | |||||
| 54 | WB27X42546 | Spring |
|
- | |||||
| 57 | WB27X42534 | Fixing Brkt *right |
|
- | |||||
| 58 | WB27X42912 | Ass'y Insulator Heat |
|
- | |||||
| 59 | WB27X46886 | Flush Mount Deflector |
|
- | |||||
| 60 | WB27X48818 | Control Asm (ass'y Control) |
|
- | |||||
| 61 | WB27X46887 | Instalation Screws |
|
- | |||||
| 9999 | 49-7000238 | Printed And Onlineowners Manual |
|
- | |||||
| 9999 | 31-7000249 | Printed And Onlineinstall Instructions |
|
- | |||||
| 9999 | 31-7000170 | Pm Mini Manual And Wiring |
|
- |
