Body Parts

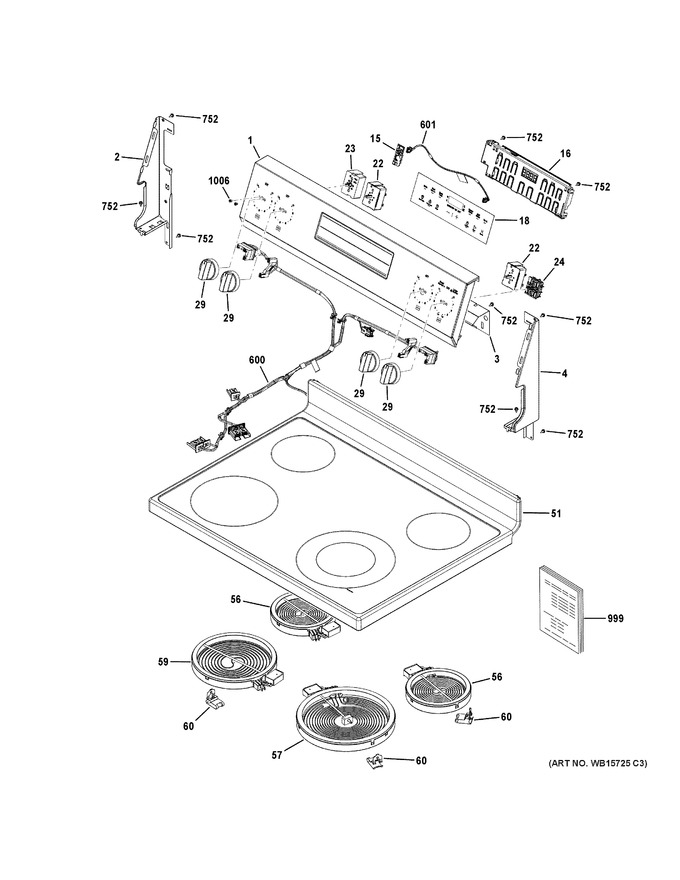

Control Panel & Cooktop
Door
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WB56X47225 | Control Panel-stainless |
|
- | |||||
| 2 | WB07X47218 | Lh End Plate- Black |
|
- | |||||
| 3 | WB34X47214 | Heat Shield |
|
- | |||||
| 4 | WB07X47213 | Rh End Plate-black |
|
- | |||||
| 15 | WB27X45808 | Wifi/ble Combo Board |
|
- | |||||
| 16 | WB27X48610 | Obc1 Control (flashed) |
|
- | |||||
| 17 | WB01X50386 | Control Bracket |
|
- | |||||
| 18 | WB07X47346 | Overlay |
|
- | |||||
| 22 | WB24T10022 | Inf Switch Control 1250w |
|
$ 48.75 | |||||
| 23 | WG02F04022 | Control Surf Elem (Replaces: WB24T10146) |
|
Immediately | $ 53.80 | ||||
| 24 | WB24X25013 | Switch Infinite Control |
|
- | |||||
| 29 | WB03X47129 | Knob |
|
- | |||||
| 51 | WB62X47095 | Maintop |
|
- | |||||
| 56 | WB30X47331 | 5.5 In Radiant Element |
|
- | |||||
| 57 | WB30X47332 | Radiant Elenent 9 In Dual |
|
- | |||||
| 59 | WB30X47329 | 8 In Radiant Element |
|
- | |||||
| 60 | WB02X48326 | Retainer Clip |
|
- | |||||
| 600 | WB18X47334 | Maintop Harness |
|
- | |||||
| 601 | WB18X47350 | Wifi Harness |
|
- | |||||
| 752 | WG04A00781 | Screw 8-18 Ab Hxw 3/8 (Replaces: WH2X930) |
|
Immediately | $ 3.57 | ||||
| 803 | WB01X48946 | Screw 8-18 Ab Trt-15 3/8 S |
|
- | |||||
| 999 | 31-2001199 | Pm Mini Manual And Wiring |
|
- | |||||
| 999 | 31-2001194 | Pm Install Instructions |
|
- | |||||
| 999 | 49-2001186 | Pm Owners Manual |
|
- | |||||
| 1006 | WB01X23501 | Scr 8-32 Tt Flp .270 |
|
- |
