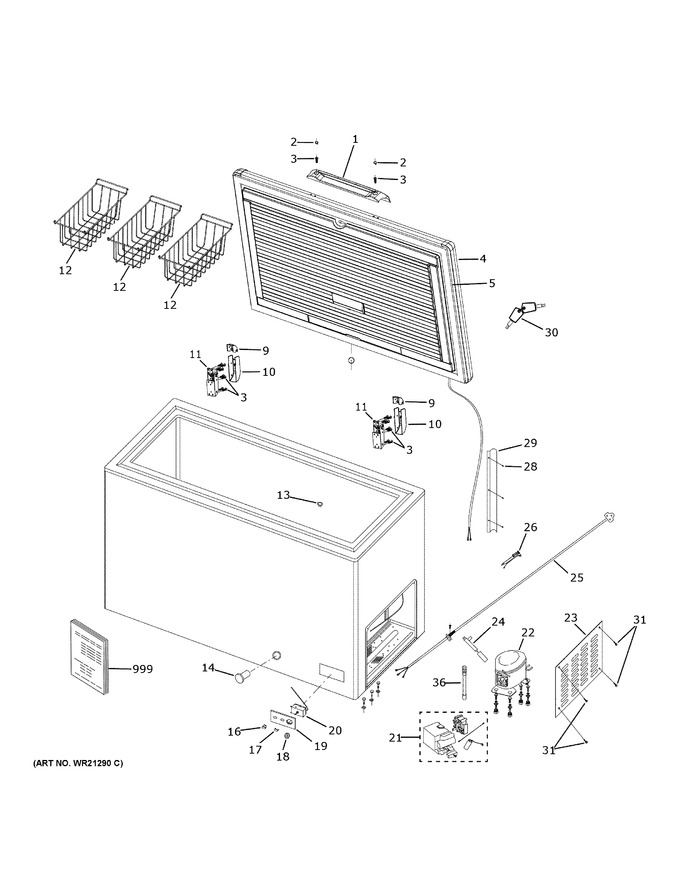

SELECT A DIAGRAM

Freezer


Lokring Connectors


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WR12X42365		Door Handle - Grey		Appelez-nous	-
2	WR01X42366		Screw Cover - Grey		Appelez-nous	-
3	WR01X35245		Screw		Appelez-nous	-
4	WR78X46029		Camo Door		Appelez-nous	-
5	WR14X41895		Gasket - Grey		Appelez-nous	-
9	WR13X42367		Top Hinge Cover - Grey		Appelez-nous	-
10	WR13X42368		Bottom Hinge Cover - Grey		Appelez-nous	-
11	WR12X27822		Freezer Door Hinge		Appelez-nous	-
12	WR71X41886		Basket		Appelez-nous	-
13	WR01X43467		Drain Plug		Appelez-nous	-
14	WR01X41898		Drain Plug Exterior - Grey		Appelez-nous	-
16	WR01X41889		Power Indicator Light - Green		Appelez-nous	-
17	WR13X42370		Light Cover - Grey		Appelez-nous	-
18	WR01X42371		Control Knob - Grey		Appelez-nous	-
19	WR09X46030		Control Panel - Grey		Appelez-nous	-
20	WR09X46027		Thermostat		Appelez-nous	-
21	WR87X33865		Compressor Electricals		Appelez-nous	-
22	WR87X43585		Compressor		Appelez-nous	-
23	WR13X41903		Access Cover - Camo		Appelez-nous	-
24	WR87X30875		R600 Drier W/ Red Cap		Appelez-nous	-
25	WR55X38965		Power Cord		Appelez-nous	-
26	WR55X41891		Compressor Harness		Appelez-nous	-
28	WR01X27789		Screw St3.5 X 9.5		Appelez-nous	-
29	WR13X28040		Harness Door Cover		Appelez-nous	-
30	WR01X28053		Door Key				$ 12.25
31	WR01X27843		Screw St3.5 X 13		Appelez-nous	-
36	WR87X30876		R600 Process Valve W/ Red Cap		Appelez-nous	-
999	49-1000740		Pm Quick Owners Manual		Appelez-nous	-
999	31-1000743		Pm Mini Manual And Wiring		Appelez-nous	-
