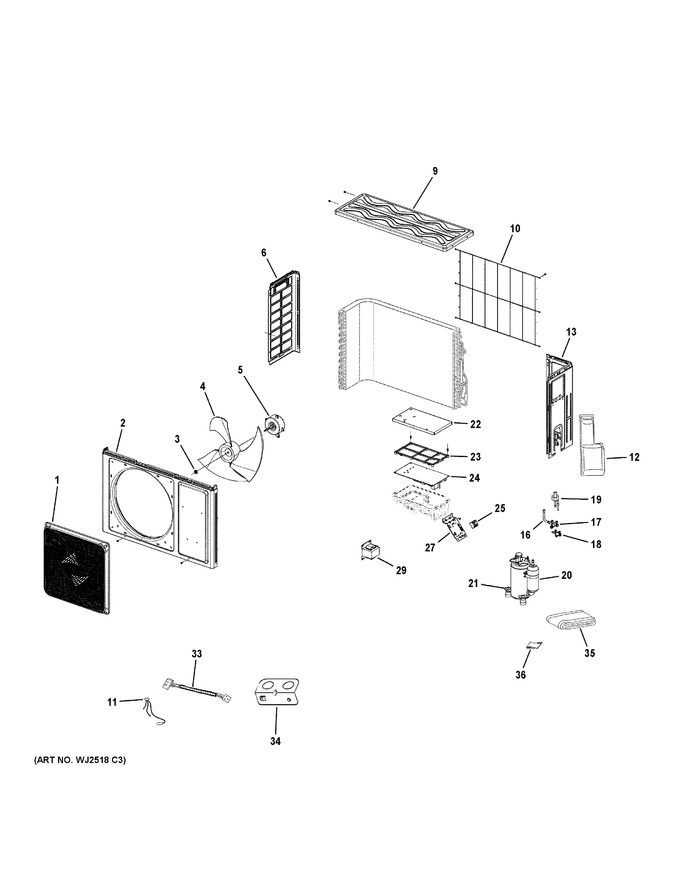

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X34094		Grille		Appelez-nous	-
2	WJ76X34154		Front Panel		Appelez-nous	-
3	WJ01X23150		Flange Nut				$ 1.77
4	WJ73X34155		Fan Blade		Appelez-nous	-
5	WJ94X34156		Outdoor Motor		Appelez-nous	-
6	WJ71X34238		Left Panel		Appelez-nous	-
9	WJ71X34239		Top Panel		Appelez-nous	-
10	WJ71X34234		Rear Grille		Appelez-nous	-
11	WJ26X34254		Sensor Assy. Comp/amb/def		Appelez-nous	-
12	WJ76X34158		Service Valve Cover		Appelez-nous	-
13	WJ71X34243		Side/rear Panel Assy		Appelez-nous	-
16	WJ53X34237		Valve Tube Assembly		Appelez-nous	-
17	WJ53X24974		Vapor Service Valve		Appelez-nous	-
18	WJ53X24973		Liquid Service Valve		Appelez-nous	-
19	WJ53X23148		Electronic Expansion Valve				$ 126.89
20	WJ98X34160		Compressor		Appelez-nous	-
21	WJ01X22974		Flange Nut		Appelez-nous	-
22	WJ76X34235		Electrical Box Cover		Appelez-nous	-
23	WJ65X34138		Pcb Bracket		Appelez-nous	-
24	WJ26X34244		Outdoor Pcb		Appelez-nous	-
25	WJ27X26435		Terminal Block		Appelez-nous	-
27	WJ65X34163		Terminal Block Mounting Bracket		Appelez-nous	-
29	WJ27X23006		Reactor		Appelez-nous	-
33	WJ35X34144		Wiring Harness		Appelez-nous	-
34	WJ65X34148		Electrical Conduit Bracket		Appelez-nous	-
35	WJ43X34110		Compressor Insulation Blanket		Appelez-nous	-
36	WJ43X34108		Mastic		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
