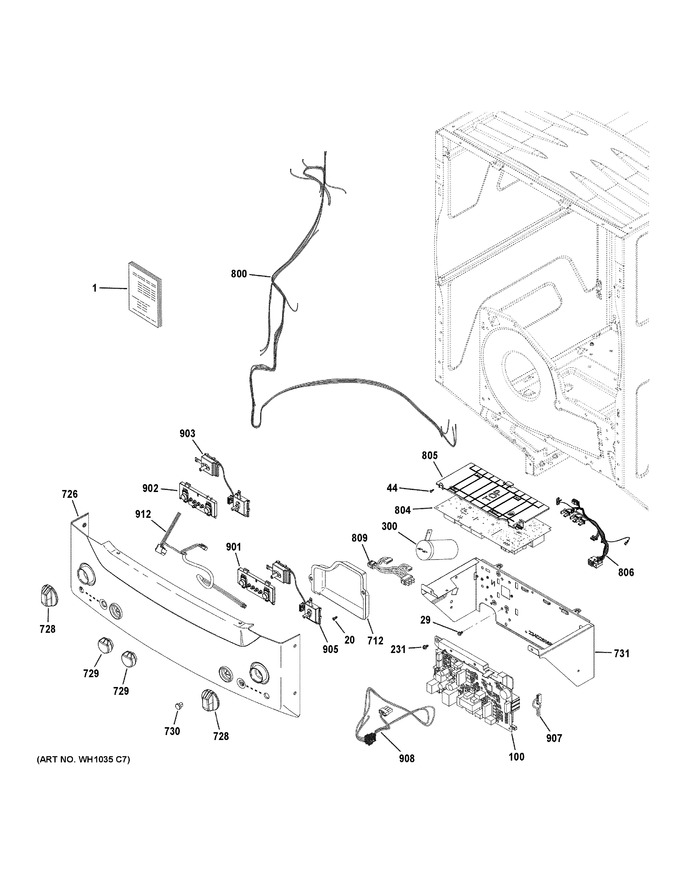

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-3000022		Pm Mini Manual		Appelez-nous	-
1	49-90582		Pub Number Manual Use & Care		Appelez-nous	-
1	31-16782		Pub Number Pm Installation Instruction		Appelez-nous	-
20	WE2M302		Scr 8-15 B Pnq2 7/8		Appelez-nous	-
29	WB01K10042		Scr 8-18 Ab Ihw 3/8 Sn		Appelez-nous	-
44	WE2M282		Scr 6-18 B B1q1 3/4 S Zn		Appelez-nous	-
100	WH22X28676		Washer Main Board & Support		Appelez-nous	-
231	WE01X25535		Scr 10-16 Gx Ihxw Q2 3/8 S Zn		Appelez-nous	-
300	WH12X27299		Capacitor		Appelez-nous	-
712	WE13X28664		Controls Support		Appelez-nous	-
726	WE22X28665		Control Panel 27"		Appelez-nous	-
728	WE04X23115		Knob Control Asm		Appelez-nous	-
729	WE04X23116		Knob Rotatory Asm		Appelez-nous	-
730	WE04X27654		Button Start Asm		Appelez-nous	-
731	WE04X27287		Enclosure Board 27"		Appelez-nous	-
800	WE08X28675		Gas Dryer Main Harness		Appelez-nous	-
804	WE22X28671		Dryer Main Board		Appelez-nous	-
805	WE13X28672		Dryer Main Board Bracket		Appelez-nous	-
806	WE08X28878		Gas Dryer Jumper Harness		Appelez-nous	-
809	WW03F00013		Harness Ui Asm   (Replaces: WE26M362)				$ 60.54
901	WE22X28668		Dryer Ui Board		Appelez-nous	-
902	WH22X28667		Washer Ui Board		Appelez-nous	-
903	WH04X28666		Washer Selector		Appelez-nous	-
905	WE22X28861		Selector Asm		Appelez-nous	-
907	WE15X28674		27" Software Jumper Harness		Appelez-nous	-
908	WE15X27306		Harness Extension		Appelez-nous	-
912	WE08X28669		Dryer Rj45 Harness & Connector		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
