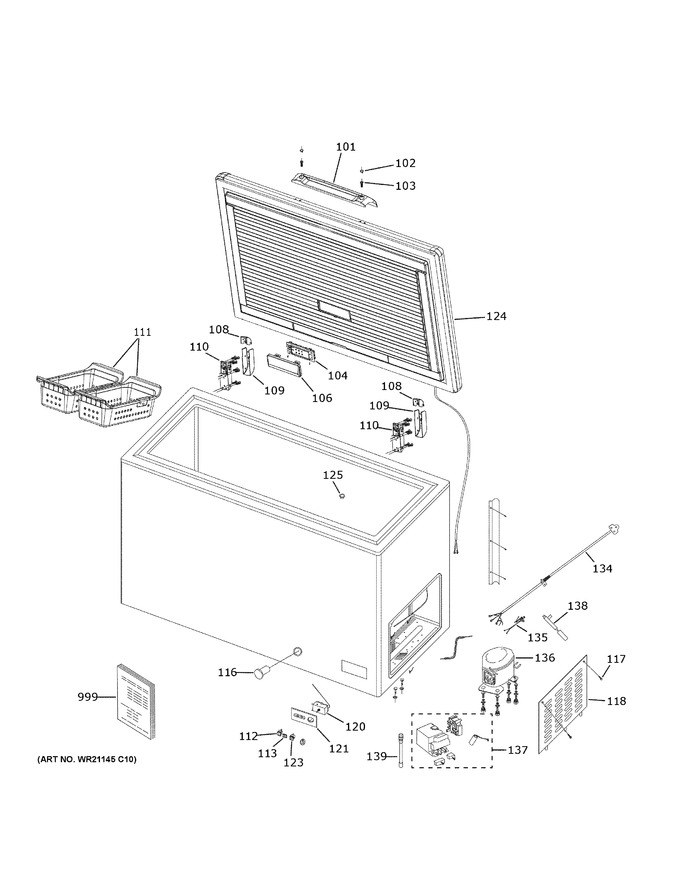

Freezer
Lokring Connectors
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 101 | WR12X38876 | White Handle |
|
- | |||||
| 102 | WR01X28054 | Cover Screw White |
|
- | |||||
| 103 | WR01X46592 | Screw |
|
- | |||||
| 104 | WR55X37826 | Led Light |
|
- | |||||
| 106 | WR02X38877 | Led Light Cover |
|
- | |||||
| 108 | WR13X27820 | Cover Hinge Top White |
|
- | |||||
| 109 | WR13X27819 | Cover Hinge Bottom White |
|
- | |||||
| 110 | WR12X27822 | Freezer Door Hinge |
|
- | |||||
| 111 | WR71X37828 | Freezer Basket |
|
- | |||||
| 112 | WR01X40145 | Green Light |
|
- | |||||
| 113 | WR13X29592 | Light Cover |
|
- | |||||
| 116 | WR01X36306 | Drain Plug Exterior |
|
- | |||||
| 117 | WR01X27843 | Screw St3.5 X 13 |
|
- | |||||
| 118 | WR14X37831 | Access Cover |
|
- | |||||
| 120 | WG03F07522 | Thermostat (Replaces: WR09X27830) |
|
$ 78.84 | |||||
| 121 | WR13X29589 | Control Panel Cover |
|
- | |||||
| 123 | WR01X40146 | Red Light |
|
- | |||||
| 124 | WR78X37766 | Freezer Door 9 |
|
- | |||||
| 125 | WR01X36306 | Drain Plug Exterior |
|
- | |||||
| 134 | WR55X38965 | Power Cord |
|
- | |||||
| 135 | WR55X38905 | Compressor Harness |
|
- | |||||
| 136 | WR87X43585 | Compressor |
|
- | |||||
| 137 | WR87X33865 | Compressor Electricals |
|
- | |||||
| 138 | WR87X30875 | R600 Drier W/ Red Cap |
|
- | |||||
| 139 | WR87X30876 | R600 Process Valve W/ Red Cap |
|
- | |||||
| 999 | 49-1000547 | Pm Owners Manual |
|
- | |||||
| 999 | 31-1000552 | Pm Mini Manual And Wiring |
|
- |
