SELECT A DIAGRAM

Center Spacer


Control Panel


Lower Convection Fan


Lower Door


Lower Oven


Pedestal


Upper Convection Fan


Upper Door


Upper Oven

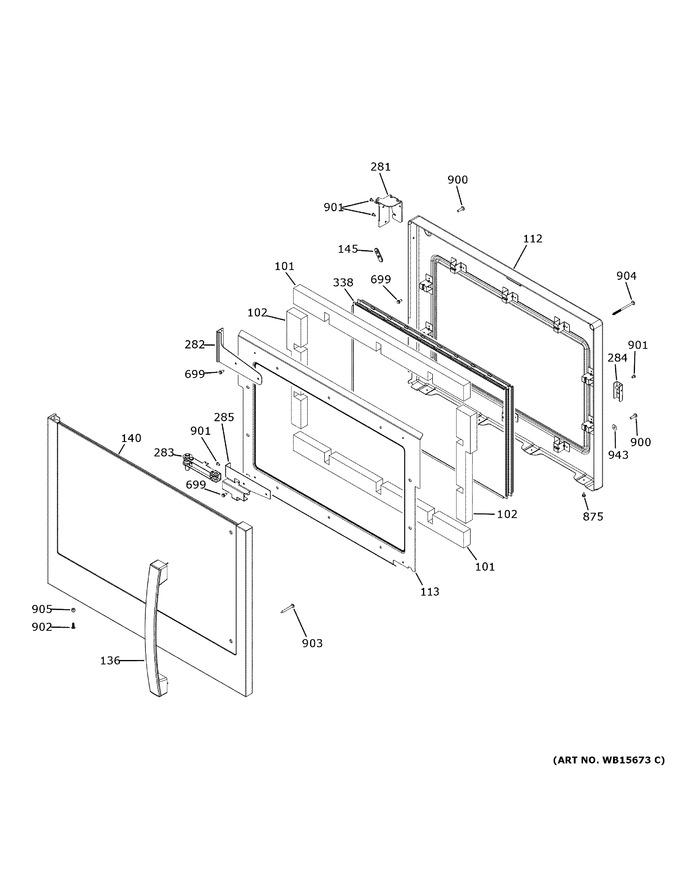

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WB35X21737		Insulation Dr Top		Appelez-nous	-
102	WB35X31513		Door Side Insulation		Appelez-nous	-
112	WB63X33797		Oven Door Liner		Appelez-nous	-
113	WB34X33798		Door Insulation Retainer		Appelez-nous	-
136	WB15X34645		Stainless Handle		Appelez-nous	-
140	WB56X33871		Stainless Outer Left Hinge Upper Door		Appelez-nous	-
145	WB02X37056		Liner Door Plug		Appelez-nous	-
281	WB10X41667		Hinge Upr Lh		Appelez-nous	-
282	WB34X37073		Hinge Upper Left Bracket		Appelez-nous	-
283	WB10X34643		Hinge Closure Left Door		Appelez-nous	-
284	WB26X34732		Roller		Appelez-nous	-
285	WB10X34697		Sleeve Left Lower Hinge		Appelez-nous	-
338	WB56X27662		Window Pack Asm		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
900	WB01X34649		Screw 10-18 Pl Trt20 3/4 S		Appelez-nous	-
901	WB01T10012		Screw 8-18 Ab Flt 375 B		Appelez-nous	-
902	WR01X24363		Scr 8- 18 Ba Ovt 5/8 Ss		Appelez-nous	-
903	WB01T10132		Screw 10-32 Hex 1 3/4 In		Appelez-nous	-
904	WB01X37065		Screw 10-32 Ca Trt15 3.06		Appelez-nous	-
905	WB02X37059		Spacer Link		Appelez-nous	-
943	WB02X40586		Washer Black		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
