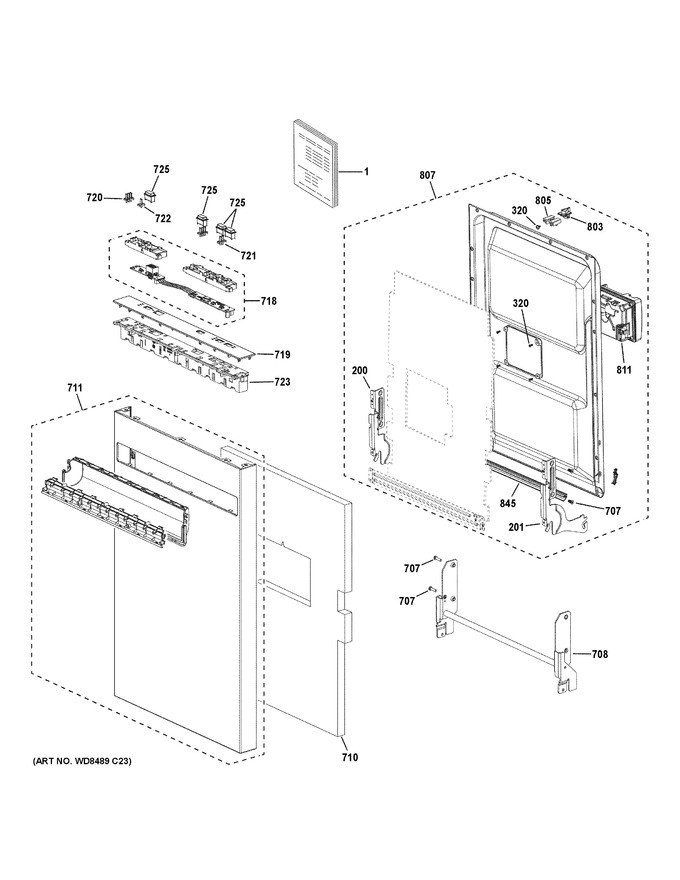

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Body Parts
Escutcheon & Door Assembly
Motor-pump Mechanism
Rack Assemblies
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-4000247 | Pm Install Instructions |
|
- | |||||
| 1 | 49-4000277 | Pm Quick Owners Manual |
|
- | |||||
| 1 | 49-4000275 | Pm Owners Manual |
|
- | |||||
| 1 | 31-4000295 | Printed Onlymini Manual And Wiring |
|
- | |||||
| 200 | WD01X24738 | Hinge Mechanism Lh |
|
- | |||||
| 201 | WD01X24739 | Hinge Mechanism Rh |
|
- | |||||
| 320 | WD02X24690 | Screw |
|
- | |||||
| 707 | WD02X24689 | Screw Door Brace |
|
- | |||||
| 708 | WD27X24639 | Door Brace |
|
- | |||||
| 710 | WD01X24642 | Door Insulation |
|
- | |||||
| 711 | WD27X24682 | Outer Door Panel Asm Bb Profile |
|
- | |||||
| 718 | WD21X28718 | Ui Control Asm |
|
- | |||||
| 719 | WD34X24628 | Console Cover Bb |
|
- | |||||
| 720 | WD02X26239 | Light Pipe 3 |
|
- | |||||
| 721 | WD02X26241 | Light Pipe 2 |
|
- | |||||
| 722 | WD02X26240 | Light Pipe 1 |
|
- | |||||
| 723 | WD12X26199 | Console |
|
- | |||||
| 725 | WD09X24600 | Buttons Black |
|
- | |||||
| 803 | WD01X33212 | Door Latch Striker |
|
- | |||||
| 805 | WD01X33211 | Striker Mount |
|
- | |||||
| 807 | WD27X33216 | Inner Door |
|
- | |||||
| 811 | WD12X32801 | Detergent Module |
|
- | |||||
| 845 | WD08X33680 | Beach Gasket |
|
- |
