SELECT A DIAGRAM

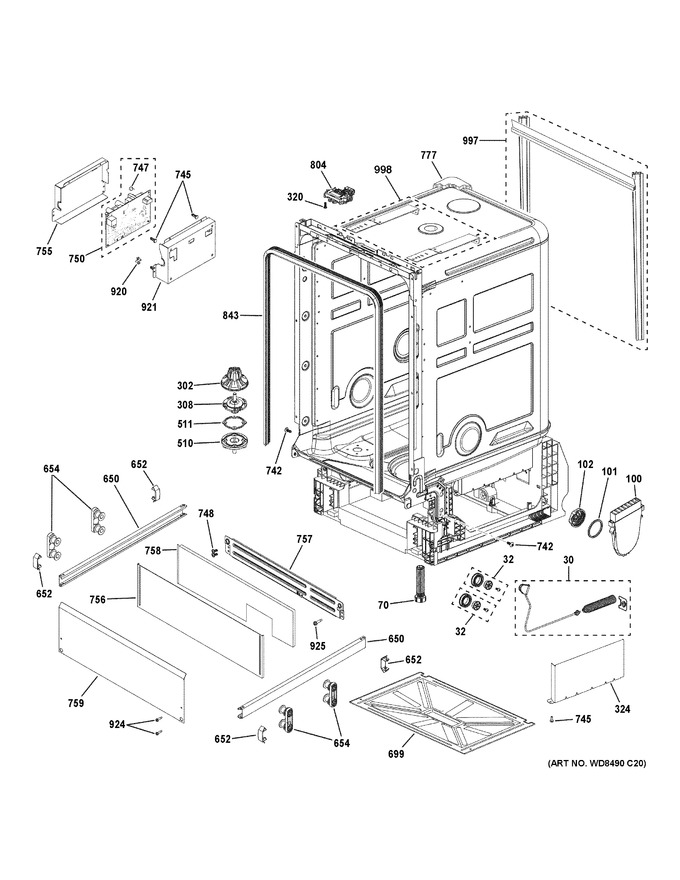

Body Parts


Escutcheon & Door Assembly


Motor-pump Mechanism


Rack Assemblies


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
30	WD02X33220		Door Spring And Cable		Appelez-nous	-
32	WD01X33219		Pulley		Appelez-nous	-
70	WD02X33360		Leveling Leg		Appelez-nous	-
100	WD24X27560		Vent Funnel Asm		Appelez-nous	-
101	WD08X27559		Vent Funnel Gasket		Appelez-nous	-
102	WD12X27561		Vent Funnel Inlet Nut		Appelez-nous	-
302	WD12X24658		Flood Float Cover		Appelez-nous	-
308	WD12X24657		Flood Float & Switch Asm		Appelez-nous	-
320	WD02X24690		Screw		Appelez-nous	-
324	WD01X24708		Wash Pump Shield		Appelez-nous	-
510	WD12X24659		Flood Float Stem		Appelez-nous	-
511	WD08X24660		Flood Float Stem Gasket		Appelez-nous	-
650	WD30X25805		Upper Rack Slide		Appelez-nous	-
652	WD12X24354		Rack Slide End Cap				$ 14.99
654	WD30X24688		Rack Slide Support		Appelez-nous	-
699	WD01X33480		Leak Pan		Appelez-nous	-
742	WH02X27460		Caster Screw		Appelez-nous	-
745	WJ01X23759		Screw		Appelez-nous	-
747	WD21X24482		Control Board Fuse 3.1a		Appelez-nous	-
748	WD02X33199		Screw		Appelez-nous	-
750	WD21X32838		Main Control Board		Appelez-nous	-
755	WD01X24635		Control Box Front		Appelez-nous	-
756	WD27X24596		Adjustable Toe Kick Black		Appelez-nous	-
757	WD30X33359		Front Brace And Barrier		Appelez-nous	-
758	WD30X33519		Toe Kick Insulation		Appelez-nous	-
759	WD27X33204		Black Toe Kick		Appelez-nous	-
777	WD30X33681		Tub Insulation Blanket		Appelez-nous	-
804	WD01X33217		Door Latch		Appelez-nous	-
843	WD08X24724		Tub Gasket		Appelez-nous	-
920	WD02X24632		Control Board Clip		Appelez-nous	-
921	WD01X24633		Control Box Back		Appelez-nous	-
924	WD02X33202		Black Screw		Appelez-nous	-
925	WD02X24614		Ground Screw		Appelez-nous	-
997	WD01X33218		Trim Kit		Appelez-nous	-
998	WD02X33221		Mounting Brackets Kit		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
