Body Parts


Control Panel


Door

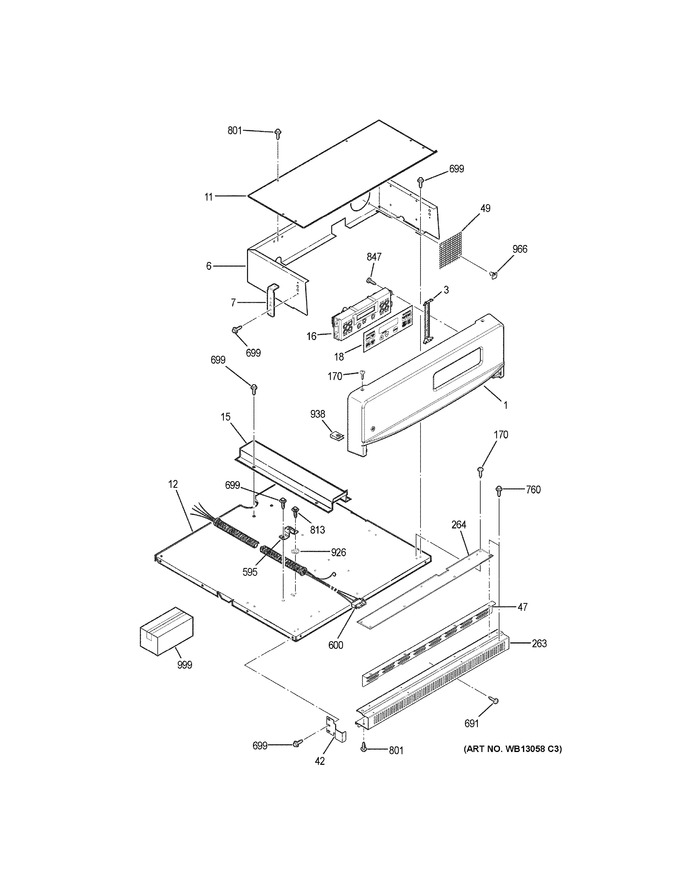

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WB36T10756		Panel Cntl Swo (scr-blk)		Appelez-nous	-
1	229C5297P002		Label Wire Diagram		Appelez-nous	-
3	WB02T10250		Bracket Cntl Mtg 24		Appelez-nous	-
6	WB37K5041		Control Housing		Appelez-nous	-
7	WB2K5406		Control Panel Bracket		Appelez-nous	-
11	WB37K5040		Control Housing Top		Appelez-nous	-
12	WB63K5120		Top Cabinet		Appelez-nous	-
15	WB2X9665		Wire Cover		Appelez-nous	-
16	WB27X27463		Erc3b2k5 Oven Control				$ 194.35
18	WB27T10589		Faceplate Graphics Asm		Appelez-nous	-
42	WB34K5249		Heat Shield		Appelez-nous	-
47	WB38K5058		Barrier Vent		Appelez-nous	-
49	WB02X34847		Fan Screen Protector		Appelez-nous	-
170	WB1K60		Screw 8-18 (bk) 1/2 S		Appelez-nous	-
263	WB7K5491		Vent Trim-black		Appelez-nous	-
264	WB7K5121		Extension Vent Trim		Appelez-nous	-
595	WB2K5126		Conduit Clamp		Appelez-nous	-
600	WB18X32566		Conduit Wire Asm		Appelez-nous	-
691	WB1K5162		Screw		Appelez-nous	-
699	WB1K5150		Screw St10-16 X 7/16"		Appelez-nous	-
760	WB1K5028		Screw		Appelez-nous	-
801	WB01M10002		Screw		Appelez-nous	-
813	WS01A00445		Screw Ground   (Replaces: WB1X1261)				$ 12.51
847	WB02T10324		Scr 6-20 Gxb Ihxw 3/8 Ni		Appelez-nous	-
926	WB1X1260		Ground Washer		Appelez-nous	-
938	WB1K5209		Clip		Appelez-nous	-
966	WB2X9573		Clip		Appelez-nous	-
999	31-2000912		Pm Install Instructions		Appelez-nous	-
999	31-17242		Pm Manual Mini & Wd Asm		Appelez-nous	-
999	49-80715		Pm Owners Manual		Appelez-nous	-
