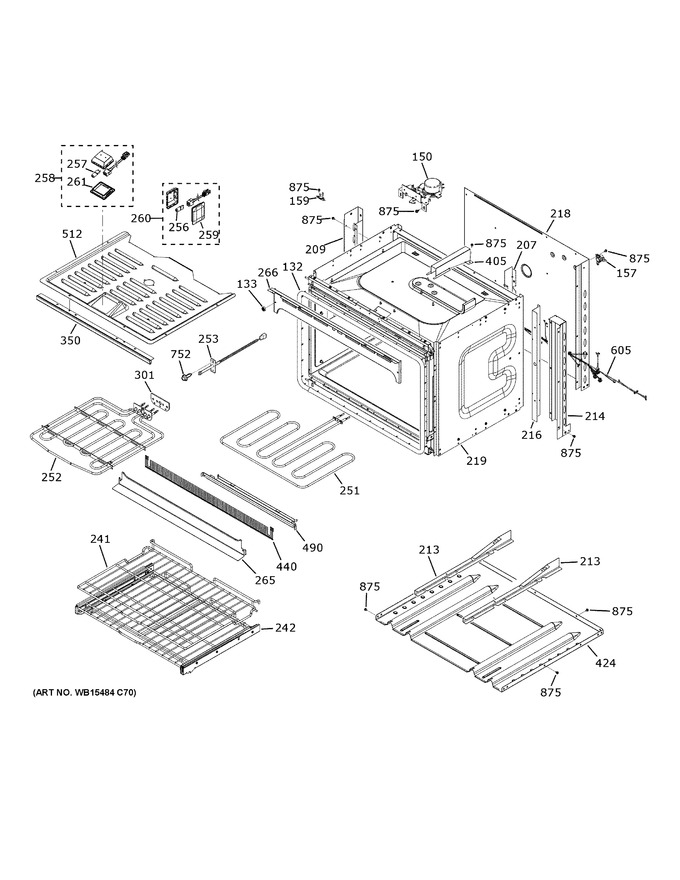

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
132	WB35X32825		Oven Door Gasket				$ 44.83
133	WB03T10341		Bumper Door		Appelez-nous	-
150	WB10X28391		Latch Asm		Appelez-nous	-
157	WB24T10164		Switch High Limit		Appelez-nous	-
159	WB24T10180		Switch Limit		Appelez-nous	-
207	WB34T10134		Divider Air Bottom		Appelez-nous	-
209	WB34X35265		Channel Rear		Appelez-nous	-
213	WB34T10163		Divider Air Bottom		Appelez-nous	-
214	WB55X10971		Channel Rear		Appelez-nous	-
216	WB34T10139		Divider Air Duct Right		Appelez-nous	-
218	WB34T10141		Duct Lower Rear Duct		Appelez-nous	-
219	WB34X21913		Retainer Insln Sde		Appelez-nous	-
241	WB48X31582		Oven Rack		Appelez-nous	-
242	WB48X38086		Sliding Oven Rack Asm		Appelez-nous	-
251	WB44X48678		Hidden Bake Element		Appelez-nous	-
252	WB44X48668		Convection Element		Appelez-nous	-
253	WB21X10165		Sensor Asm		Appelez-nous	-
256	WB25T10101		Lamp Halogen Bulb G9		Appelez-nous	-
257	WB25T10102		Lamp Halogen Bulb G9		Appelez-nous	-
258	WB25X31221		Top Halogen Lamp Asm		Appelez-nous	-
259	WB34X31280		Oven Light Lens		Appelez-nous	-
260	WB25X31222		Halogen Lamp Asm		Appelez-nous	-
261	WB34X31317		Oven Light Lens		Appelez-nous	-
265	WB07X21783		Trim Vent Lwr		Appelez-nous	-
266	WB07X32831		Upper Vent Trim		Appelez-nous	-
301	WB35X21972		Gasket Broil Element		Appelez-nous	-
350	WB07T10787		Trim Broil Element (bk)		Appelez-nous	-
405	WB34T10160		Channel Lower Air		Appelez-nous	-
424	WB56X43352		Cover Bottom Air Duct		Appelez-nous	-
440	WB34X43346		Screen Support		Appelez-nous	-
490	WB55T10197		Cover Hidden Bake		Appelez-nous	-
512	WB37T10024		Plate - Top Oven		Appelez-nous	-
605	WB18X46481		Main Wire Harness		Appelez-nous	-
752	WB01X21742		Screw		Appelez-nous	-
875	WG04A00781		Screw 8-18 Ab Hxw 3/8   (Replaces: WH2X930)			Immediately	$ 3.57
