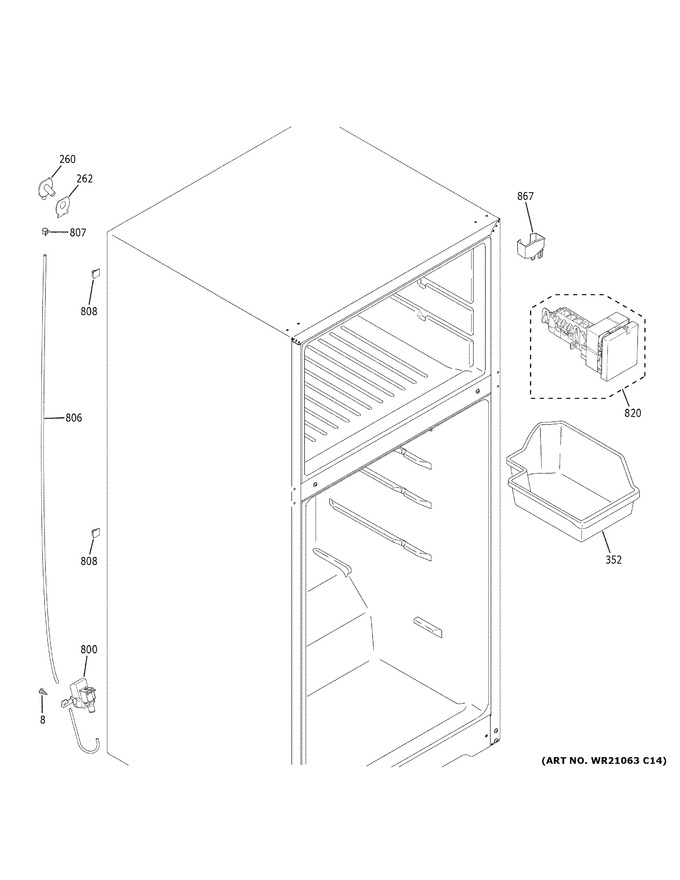

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 8 | WR01X10317 | Scr 8-32 Ca Hxw 1/2 |
|
- | |||||
| 260 | WR2X9224 | Grommet And Gasket Assy |
|
- | |||||
| 262 | WR02X25425 | Gasket Donut |
|
- | |||||
| 352 | WR30X21245 | Bucket Ice |
|
- | |||||
| 800 | WR57X32213 | Water Valve |
|
- | |||||
| 806 | WR17X11492 | Tube Plastic |
|
- | |||||
| 807 | WR02X11437 | Clamp |
|
- | |||||
| 808 | WR2X4039 | Adhesive Clip |
|
- | |||||
| 820 | WR30X30719 | Icemaker |
|
- | |||||
| 867 | WR29X10046 | Icemaker Fill Cup |
|
- |
