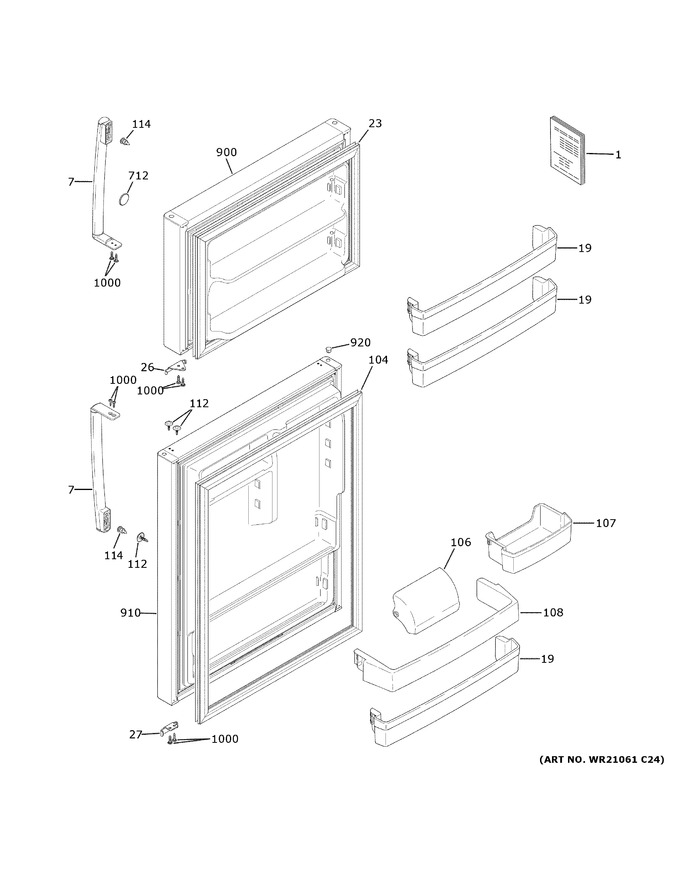

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-1000678		Pm Mini Manual And Wiring		Appelez-nous	-
7	WR12X31132		White Handle		Appelez-nous	-
19	WR71X42246		Can Shelf 22		Appelez-nous	-
23	WR14X31089		White Freezer Door Gasket 22		Appelez-nous	-
26	WR02X28287		Freezer Door Stop White		Appelez-nous	-
27	WR02X28283		Refrigerator Door Stop White		Appelez-nous	-
104	WR14X31094		White Fresh Food Door Gasket 22		Appelez-nous	-
106	WR71X31475		Dairy Door 33		Appelez-nous	-
107	WR71X31477		Modular Door Bin 33		Appelez-nous	-
108	WR71X42245		Refrigerator Door Shelf 22		Appelez-nous	-
112	WR01X21159		Plug Door Rvsbl		Appelez-nous	-
114	WR01X21158		Fastener Door Handle		Appelez-nous	-
712	WR02X31306		Chrome Ge Badge		Appelez-nous	-
900	WR78X31158		White Freezer Door 22		Appelez-nous	-
910	WR78X31208		White Fresh Food Door 22		Appelez-nous	-
920	WR2X8233		Plug Btn Wht		Appelez-nous	-
1000	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-
