SELECT A DIAGRAM
Doors
Freezer Section
Fresh Food Section
Fresh Food Shelves
Ice Maker
Lokring Connectors
Machine Compartment
SELECT A DIAGRAM
New Model Search:

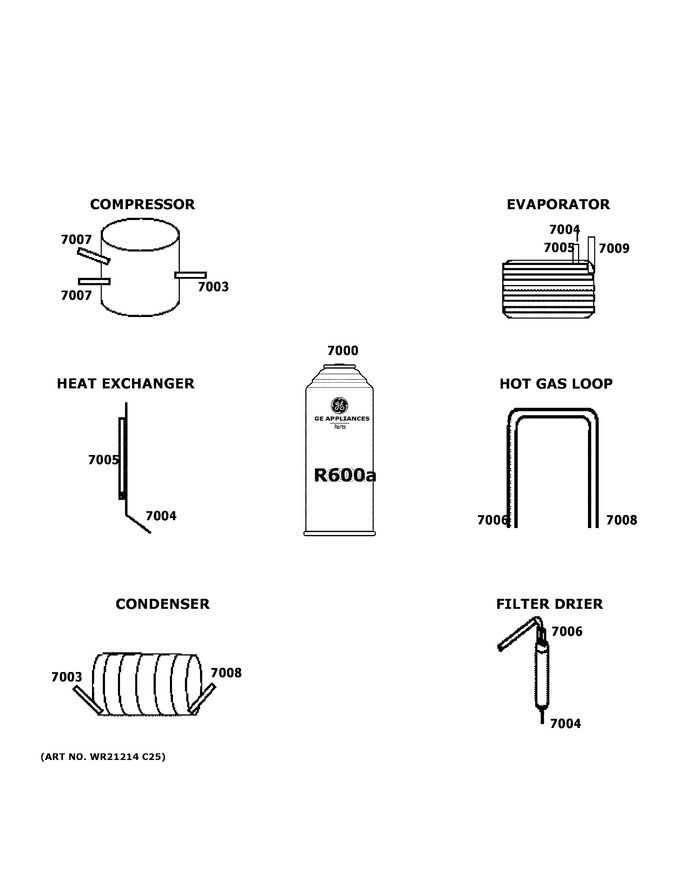

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 7000 | WR98X45 | R600a Charge Can 45 Grams |
|
- | |||||
| 7003 | WR97X25268 | 7mm X 5mm Lokring |
|
- | |||||
| 7004 | WR97X10032 | 6mm X 2mm Lokring |
|
- | |||||
| 7005 | WR97X10031 | 6mm X 6mm Lokring |
|
- | |||||
| 7006 | WR97X10033 | 6mm X 4mm Lokring |
|
- | |||||
| 7007 | WR97X10036 | 8mm X 6mm Lokring |
|
- | |||||
| 7008 | WR97X10034 | 6mm X 5mm Lokring |
|
- | |||||
| 7009 | WR97X10021 | 8mm X 8mm Lokring |
|
- |
