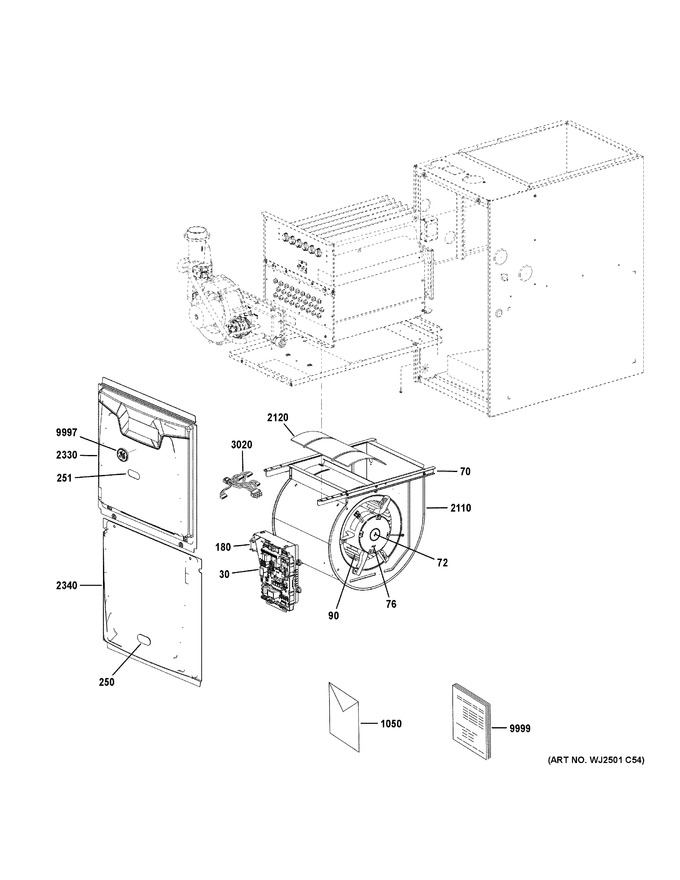

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | 22K52 | 607308-23 Kit-ign Control |
|
- | |||||
| 30 | 19V33 | 607308-20 Kit-ignition Control |
|
- | |||||
| 70 | 18M68 | Mount Motor-(cto) |
|
- | |||||
| 72 | 73W01 | 606007-01 3.0 Ecm 1/2 Hp Motor Only |
|
- | |||||
| 76 | 84W85 | 606008-04 3.0 Ecm Hp Module Only |
|
Immediately | $ 1,651.99 | ||||
| 90 | 69W52 | Wheel-blwr 10 X 9 X 1/2-(cto) |
|
- | |||||
| 180 | 42J32 | 42j3201 Transformer |
|
Immediately | $ 48.47 | ||||
| 250 | 49L04 | Sight Glass-(cto) |
|
- | |||||
| 251 | 73W21 | Sight Glass-(cto) |
|
- | |||||
| 1050 | 537437-01 | Wiring Diagram-(cto) |
|
- | |||||
| 2110 | 70W40 | Housing-blower-(cto) |
|
- | |||||
| 2120 | 69W05 | Plate-cutoff-(cto) |
|
- | |||||
| 2330 | 623817-01U | Lower Door B-width 90% Uf Blwr-(cto) |
|
- | |||||
| 2340 | 623652-04U | Upper Door B-width 90% Uf Vest-(cto) |
|
- | |||||
| 3020 | 27M11 | Motor Wiring Harness-(cto) |
|
- | |||||
| 9997 | 107213-05 | Side Gea Badge |
|
- | |||||
| 9999 | 31-5000644 | Pm Other |
|
- |
